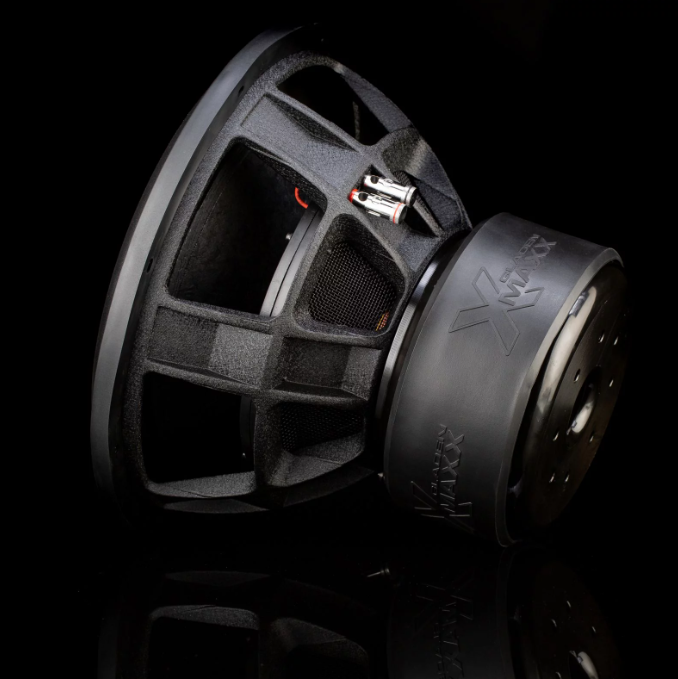

GLADEN X-MAXX 15

GLADEN X-MAXX 15

  • 所属分类：超低音
  • 人气：
  • 价格：￥16320
  • 发布时间：2023-11-23
我要咨询
  • 产品概述

Subwoofer

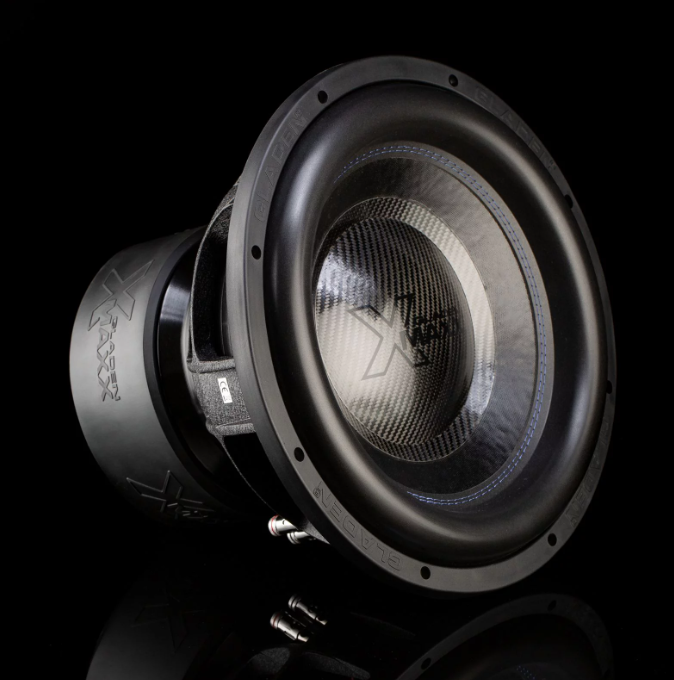

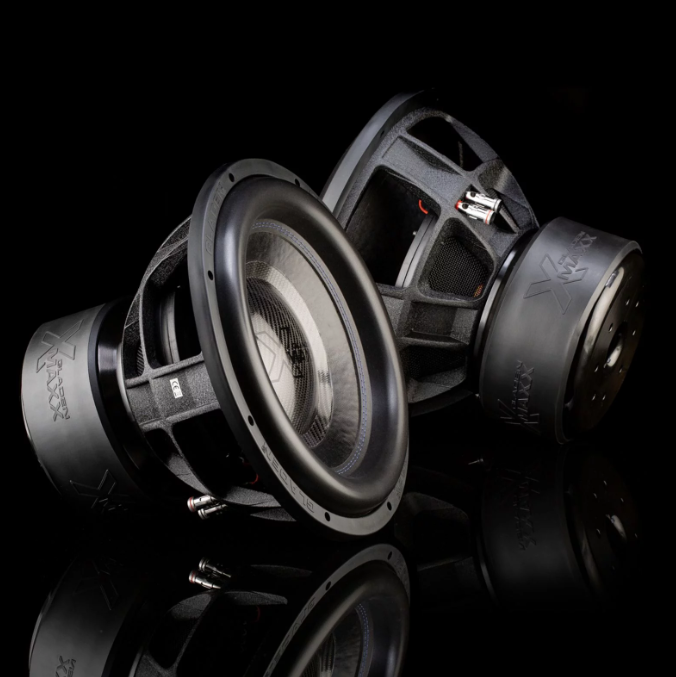

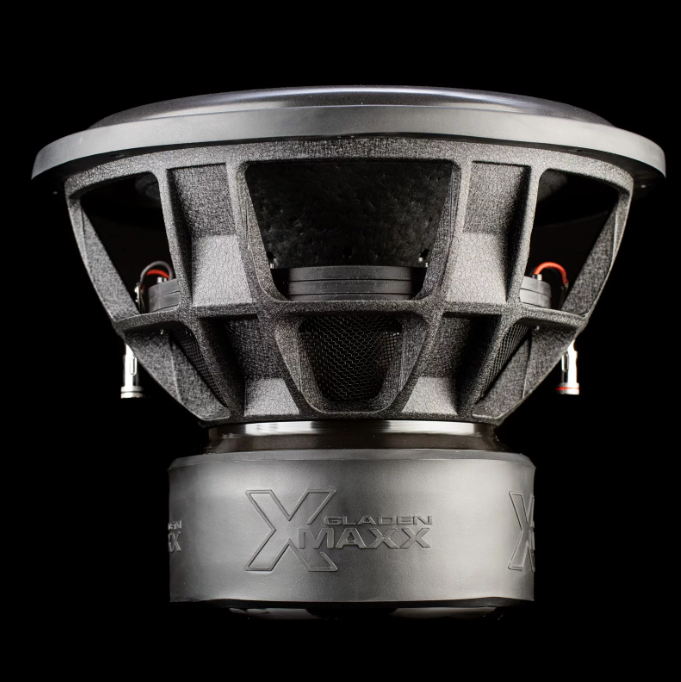

Gladen X-Maxx 15

  • 38 cm / 15" subwoofer

  • 2 x 1250 / 1875 Watts

  • 2 x 1 Ohm impedance

  • 4" flat wire voice coil

Overview Gladen X-MAXX 15

  • Low bass long excursion subwoofer

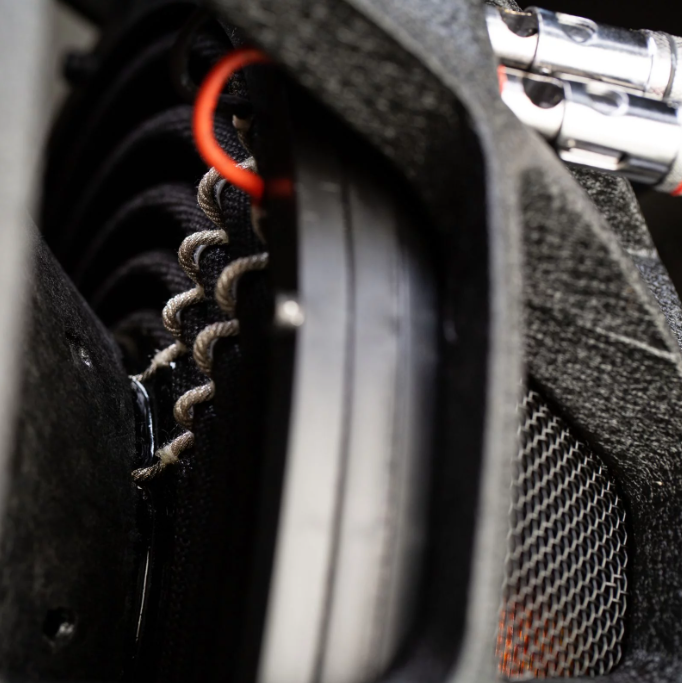

  • 4" flat wire voice coil, 4 ply, made in USA

  • 4-ply nomex center spider

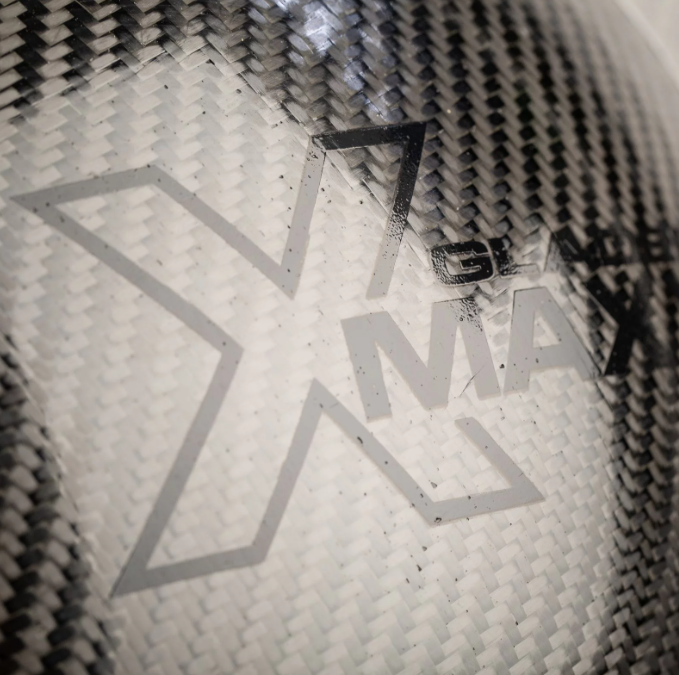

  • Carbon fiber dust cap

  • Paper cone

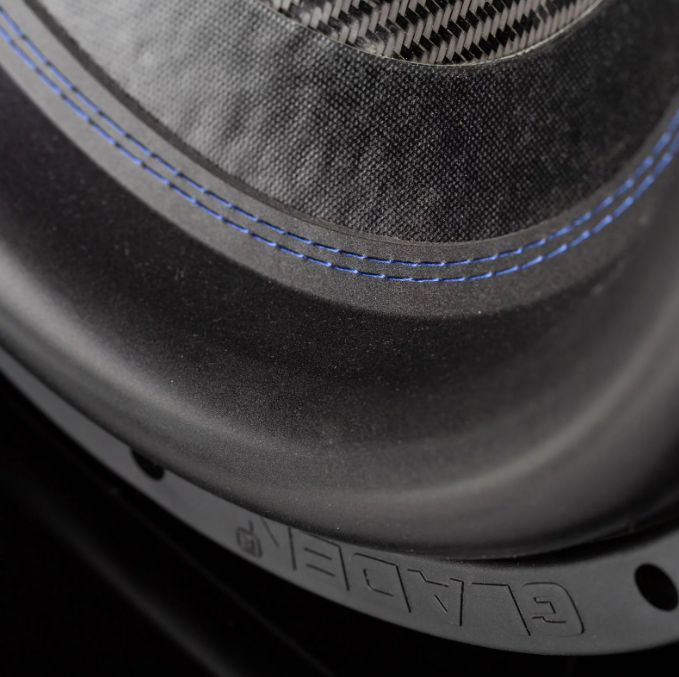

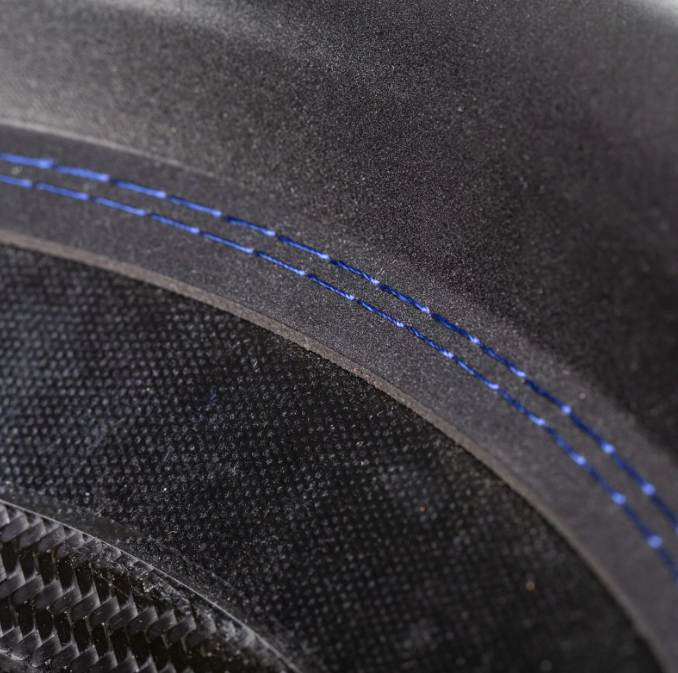

  • Extra wide long excursion foam surround

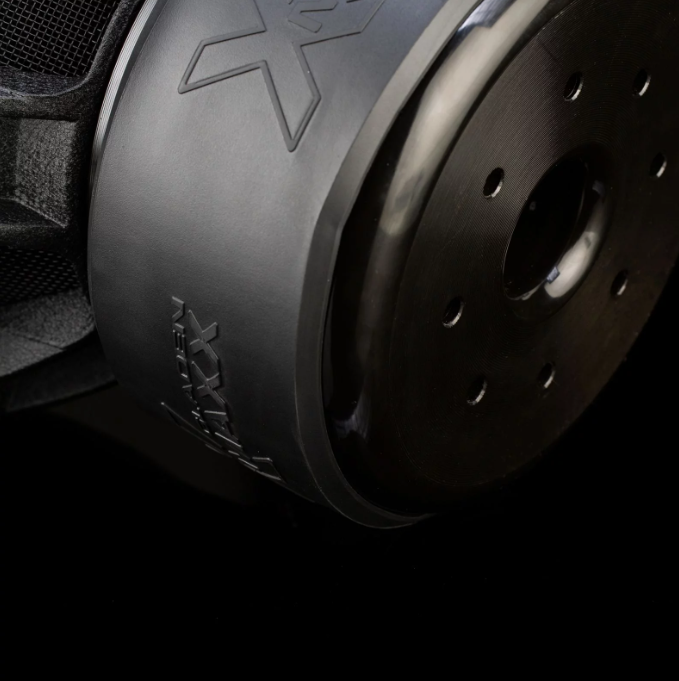

  • 80 mm ferrite magnet system (quad stack)

Technical data Gladen X-MAXX 15

Material:

  • Cone:

    Paper

  • Spider:

    Nomex

  • Surround:

    Foam

  • Coil former:

    Aluminium

  • Basket:

    Aluminum

  • Dust Cap:

    Carbon

Specifications:

  • DC resistance (Rdc):

    2 x 0,9 Ω

  • Nominal impedance (ZN):

    2 x 1 Ω

  • Resonance frequency (fs):

    32,2 Hz

  • Voice coil diameter:

    100 mm

  • Mechanical Q factor (Qms):

    5,60

  • Electrical Q factor (Qes):

    0,56

  • Total Q factor (Qts):

    0,51

  • Moving mass (Mms):

    464,3 g

  • Effective piston area (Sd):

    830 cm²

  • Mechanical resistance (Rms):

    16,8 kg/s

  • Compliance (Cms):

    0,05 mm/N

  • Force factor (BL):

    17,3 Tm

  • Equivalent air volume (Vas):

    46,4 dm³

  • Efficiency (η):

    0,27 %

  • SPL 2,83V/1m:

    86,2 dB

Download

Datasheet GLADEN X-MAXX 15 (PDF)
