GLADEN PRO 10

GLADEN PRO 10

  • 所属分类:超低音
  • 人气:
  • 价格:¥16450
  • 发布时间:2023-11-23
  • 产品概述

High End Subwoofer

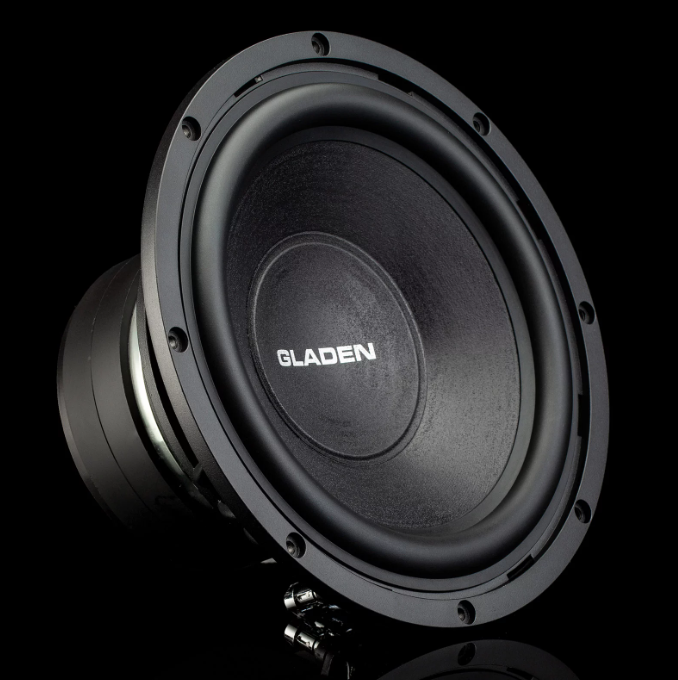

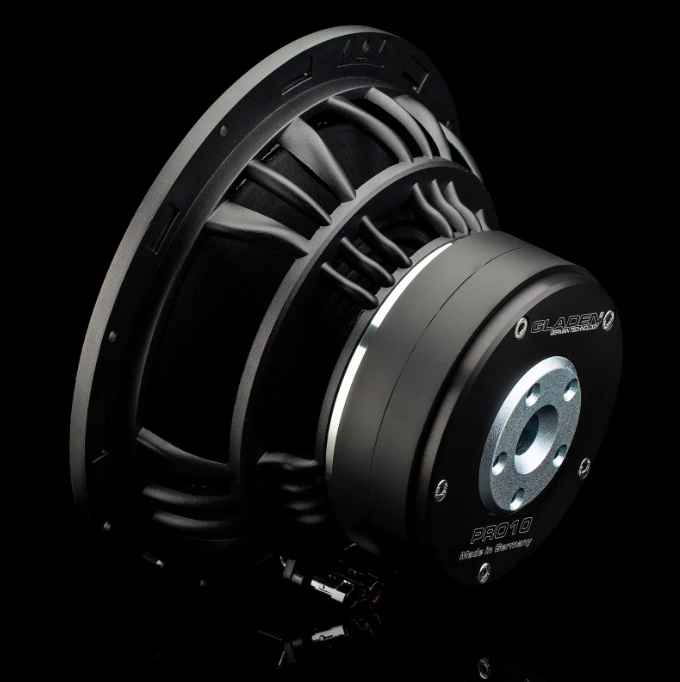

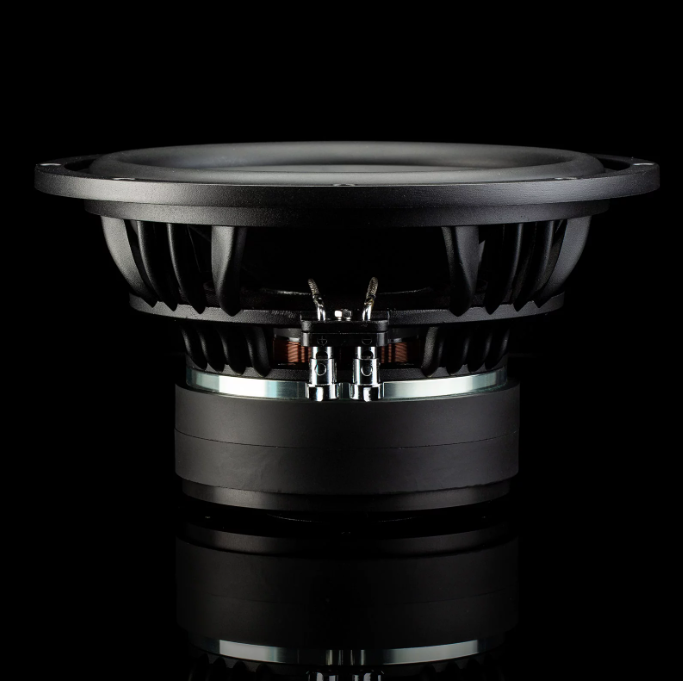

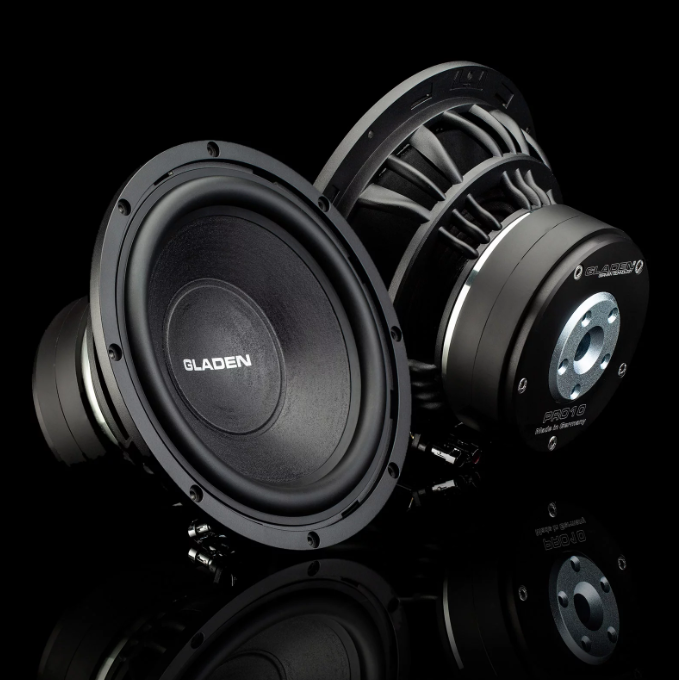

Gladen Pro 10

  • 25 cm / 10" subwoofer

  • 750 / 500 Watts

  • 4 Ohm impedance

  • 2,5" voice coil


Overview Gladen Pro 10

The Gladen Pro 10 subwoofer was developed from the genes of the Aerospace-technology. Important components such as the basket and the compound membrane were taken from the successful Aerospace series. For the drive, an optimized ferrite system was used, which guarantees optimum heat dissipation even at high levels.

Like the Aerospace subwoofer, the Gladen Pro 10 subwoofer is "Made in Germany".

Both the German trade press and the European EISA Commission awarded the Pro 10 top marks and the "Best Product 2018".

  • Next level subwoofer

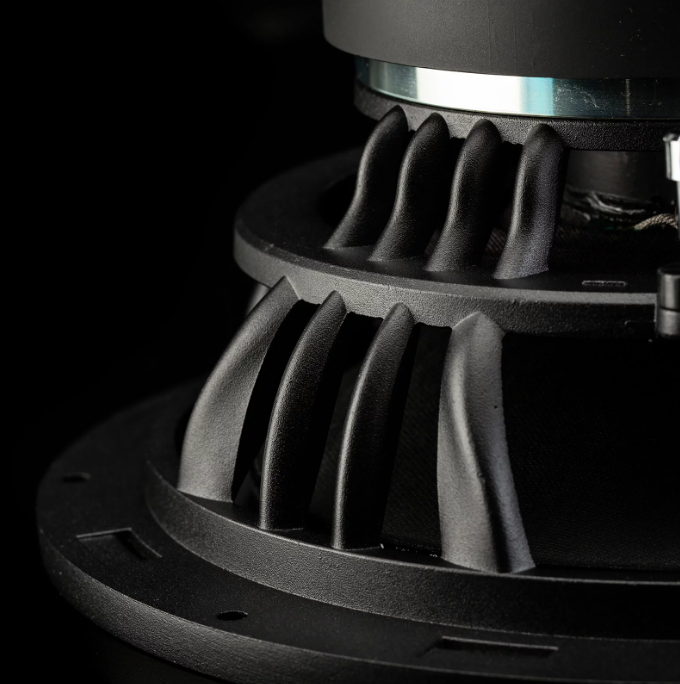

  • Computer-optimized cast basket (FME calculation)

  • Long excursion oscillating unit of the latest development

  • CX Compound diaphragm with GLADEN PFP technology (paper / foam / paper)

  • Nomex spider

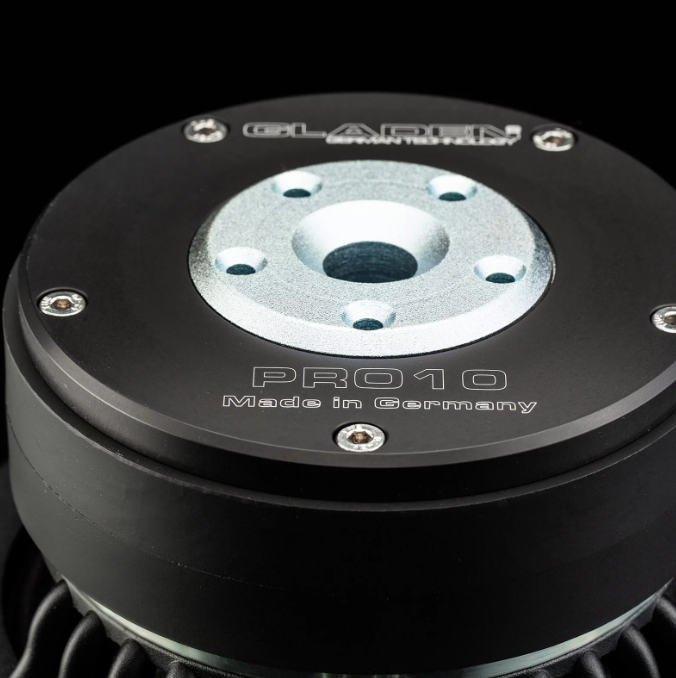

  • Hand made in Germany


Technical data Gladen Pro 10

Material:

  • Dust Cap:

    Paper

  • Coil former:

    CFK

  • Spider:

    Nomex

  • Cone:

    PFP

  • Surround:

    Foam

  • Basket:

    Aluminum


Specifications:

  • Recommended volume (sealed):

    30 - 32 liters / min. 22 liters

  • Box resonance frequency (FT):

    46 Hz

  • X-Max linear (+/-):

    15 mm

  • X-Max (+/-):

    25 mm

  • DC resistance (Rdc):

    3,4 Ω

  • Nominal impedance (ZN):

    Ω

  • Resonance frequency (Fs):

    31,44 Hz

  • Voice coil diameter:

    65 mm

  • Voice coil height:

    38 mm

  • Mechanical Q factor (Qms):

    8,13

  • Electrical Q factor (Qes):

    0,55

  • Total Q factor (Qts):

    0,51

  • Moving mass (md):

    108,83 g

  • Effective piston area (sm):

    346 cm2

  • Mechanical resistance (Rms):

    2,65 kg/s

  • Compliance (Cms):

    0,24

  • Force factor (BL):

    11,54 Tm

  • Equivalent air volume (Vas):

    34,23 dm3

  • Efficiency (η):

    0,22 %

  • SPL 1W/1m:

    85,34 dB

  • SPL 2,83V/1m:

    89,06 dB

  • External diameter:

    279 mm / 10.99 inch

  • Installation diameter:

    236 mm / 9,29 inch

  • Installation depth:

    142 mm / 5.68 inch
