GLADEN SIGMA 200.2

GLADEN SIGMA 200.2

  • 所属分类:扬声器
  • 人气:
  • 价格:¥ 4700
  • 发布时间:2025-06-10
  • 产品概述

2 - Way System

Gladen SIGMA 200.2

  • 2 x 275 / 200 Watt

  • 200mm Softdustcap Woofer

  • 3Ohm Impendanz


Overview:   Gladen SIGMA 200.2

The GLADEN SIGMA 200.2 two-way system impresses with an optimal price/performance ratio, which achieves the best possible sound performance with any music material in car audio applications.


Every component of the GLADEN SIGMA 200.2 has been carefully developed and built to meet the high demands of the vehicle. Maximum flexibility combined with unique performance: the GLADEN SIGMA series combines these two worlds to perfection. A 22mm silk tweeter with coupling volume and extensive installation accessories, and a 200mm woofer with a new HEXATEC cone and an extended maximum excursion inspire with musical drive.

"The GLADEN SIGMA series stands for exclusive car audio speakers that turn every car hi-fi system into an incomparable sound experience."

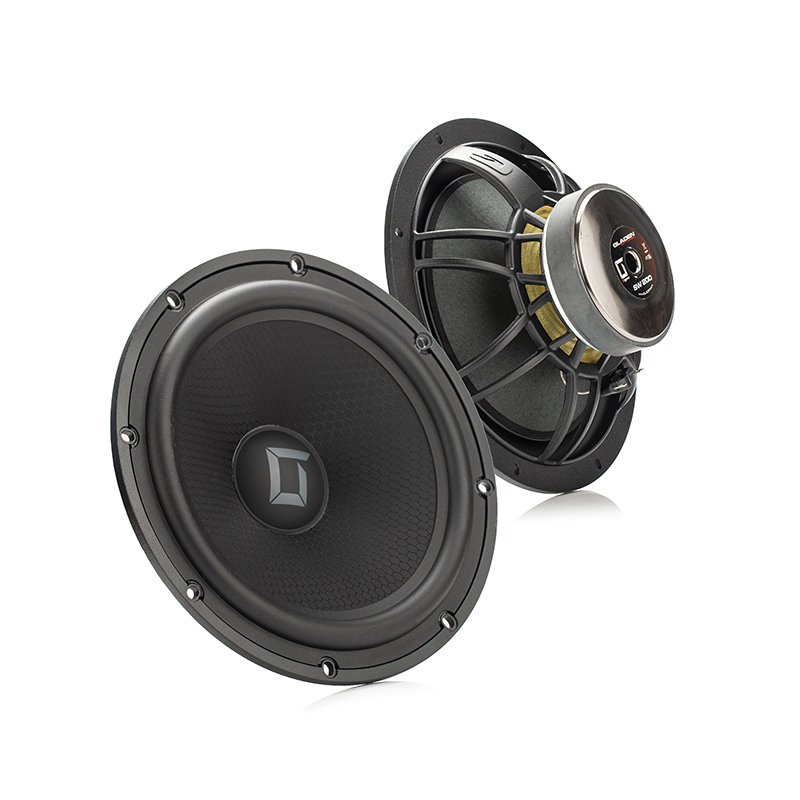

Woofer

  • Size: 200 mm

  • HEXATEC Compound - Cone

  • Aluminum basket

  • Flow-optimized basket design

  • Nomex Spider

  • Sturdy plug-in terminals

  • Soft Dust Cap

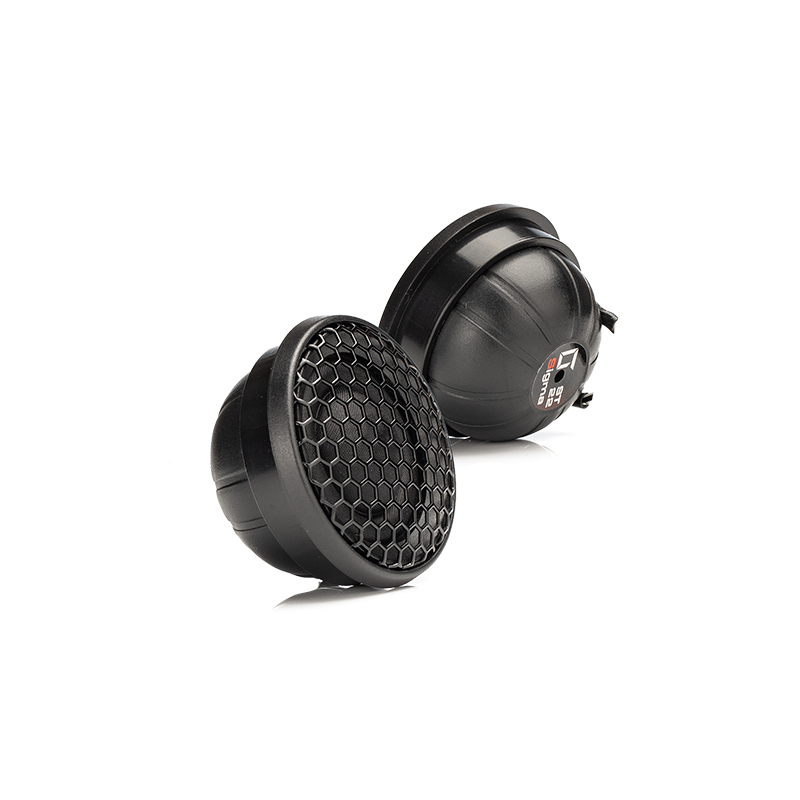

Tweeter

  • Size: 22 mm (voice coil)

  • Silk fabric membrane

  • Plastic housing with coupling volume

  • Hexagon-grille

  • 4 Ohm Impedance

  • incl. surface-mounted housing with drilling template

  • Installation rings with metal strips

  • Optional accessories: OEM grille


Technical data:   GLADEN SIGMA 200.2

Woofer

  • Diameter:

    200 mm

  • Power handling:

    275 | 200 Watts

  • Impedance:

    3 Ohm

  • Fs:

    45,2 Hz

  • Re:

    2,61

  • Qms:

    4,81

  • Qes:

    0,73

  • Qts:

    0,63

  • Vas:

    28,95 Liter

  • Sq:

    215 cm²

  • Mms:

    24,5 g


Tweeter

  • Diameter:

    22 mm

  • Power handling:

    120 | 80 Watts (3,5 kHz|24dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    790 Hz

  • Re:

    3,63 Ohm

  • Sq:

    3,8 cm²
