3 - Way System
2 x 275 / 200 Watt
200mm Softdustcap Woofer
3Ohm Impendanz

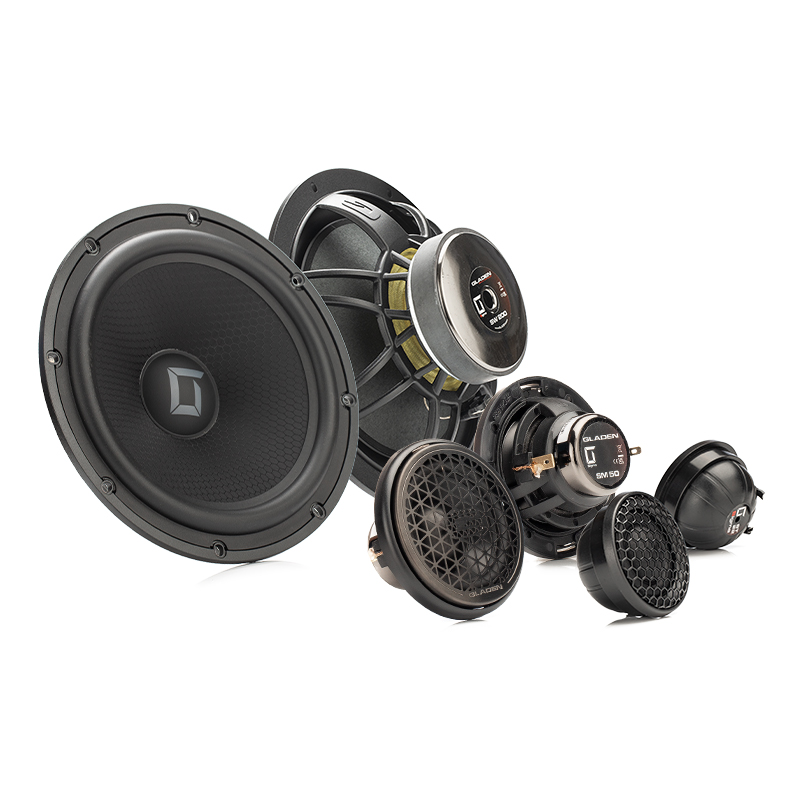

The GLADEN SIGMA 200.3 three-way system impresses with an optimal price/performance ratio, which achieves the best possible sound performance with any music material in car audio applications.
Every component of the GLADEN SIGMA 200.3 has been carefully developed and built to meet the high demands of the vehicle. Maximum flexibility combined with unique performance: the GLADEN SIGMA series combines these two worlds to perfection. A 22mm silk tweeter with coupling volume and extensive installation accessories, a 50mm midrange, and a 200mm woofer with a new HEXATEC cone and an extended maximum excursion inspire with musical drive.
Installation is quick and easy thanks to the flexible crossovers (woofer/midrange and tweeter sections can be separated). In addition to conventional operation, this crossover design also allows a bi-amping configuration.
"The GLADEN SIGMA series stands for exclusive car audio speakers that turn every car hi-fi system into an incomparable sound experience."

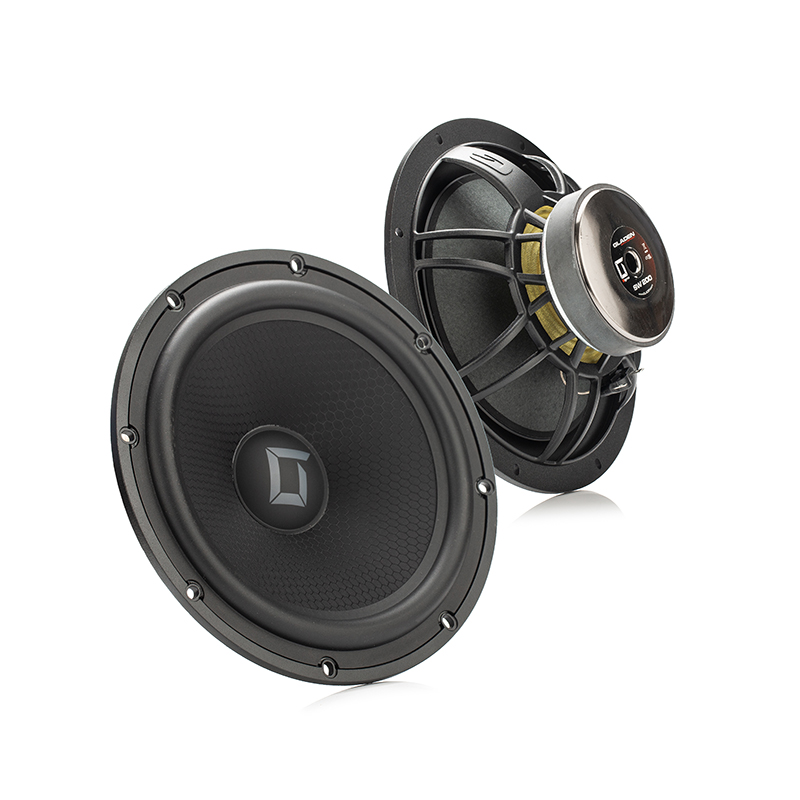

Size: 200 mm
HEXATEC Compound - Cone
Aluminum basket
Flow-optimized basket design
Nomex Spider
Sturdy plug-in terminals
Soft Dust Cap

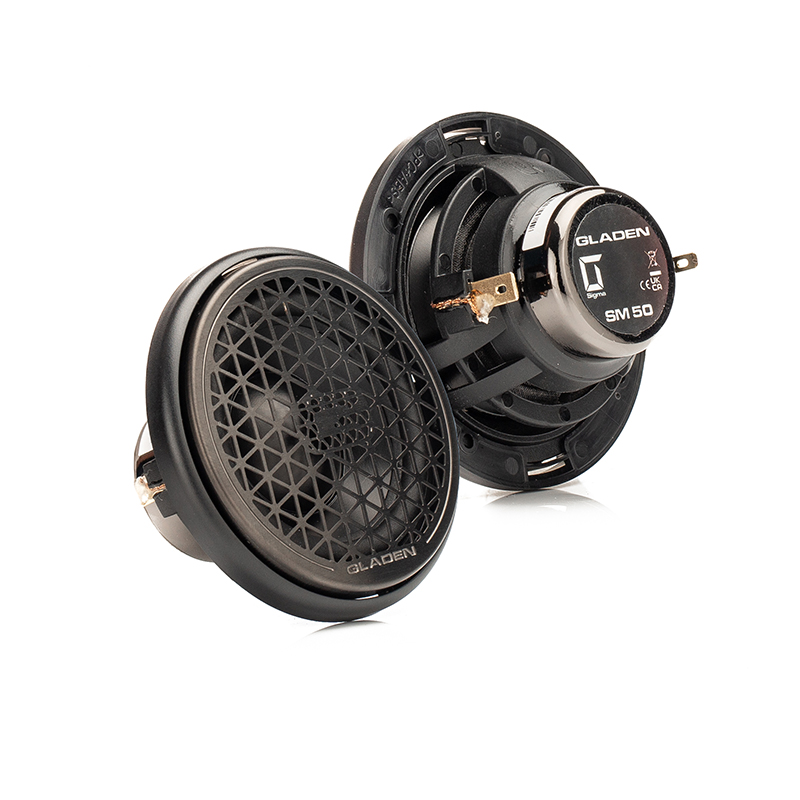

Size: 50 mm
Black anodized aluminium membrane
Polymer basket
Flow-optimized basket design
Conex Spider
19 mm Voice coil
Sturdy plug-in terminals
Alu Dust Cap
Neodymium magnet
Voice coil former made of glass fiber fabric
Frequency response up to over 20000 Hz
Rubber surround

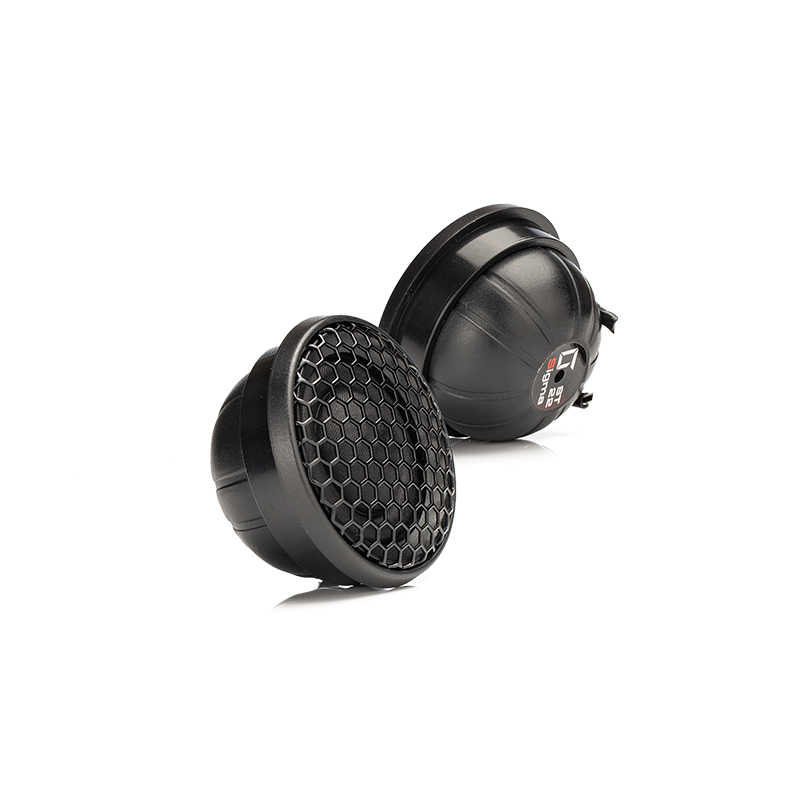

Size: 22 mm (voice coil)
Silk fabric membrane
Plastic housing with coupling volume
Hexagon-grille
4 Ohm Impedance
incl. surface-mounted housing with drilling template
Installation rings with metal strips
Optional accessories: OEM grille
200 mm
275 | 200 Watts
3 Ohm
45,2 Hz
2,61
4,81
0,73
0,63
28,95 Liter
215 cm²
24,5 g
50 mm
120 | 80 Watt (300 Hz | 24 dB/Oct.)
4 Ohm
135 Hz
3,2 Ohm
7,60
0,58
0,54
0,3 Liter
15,6 cm²
1,6 g
65 mm
7,5 mm
51 mm
22 mm
120 | 80 Watts (3,5 kHz|24dB/Okt.)
4 Ohm
790 Hz
3,63 Ohm
3,8 cm²
