GLADEN ZERO PRO 165.3 PP

GLADEN ZERO PRO 165.3 PP

  • 所属分类:扬声器
  • 人气:
  • 价格:¥ 17560
  • 发布时间:2025-06-03
  • 产品概述

3-Way System

Gladen ZERO PRO 165.3 PP

  • 165 mm 2-way component speaker system

  • 2 x 225 / 150 Watts

  • 3 Ohm impedance

  • (AC) Active-version, without crossover


Overview
GLADEN ZERO PRO 165.3 PP

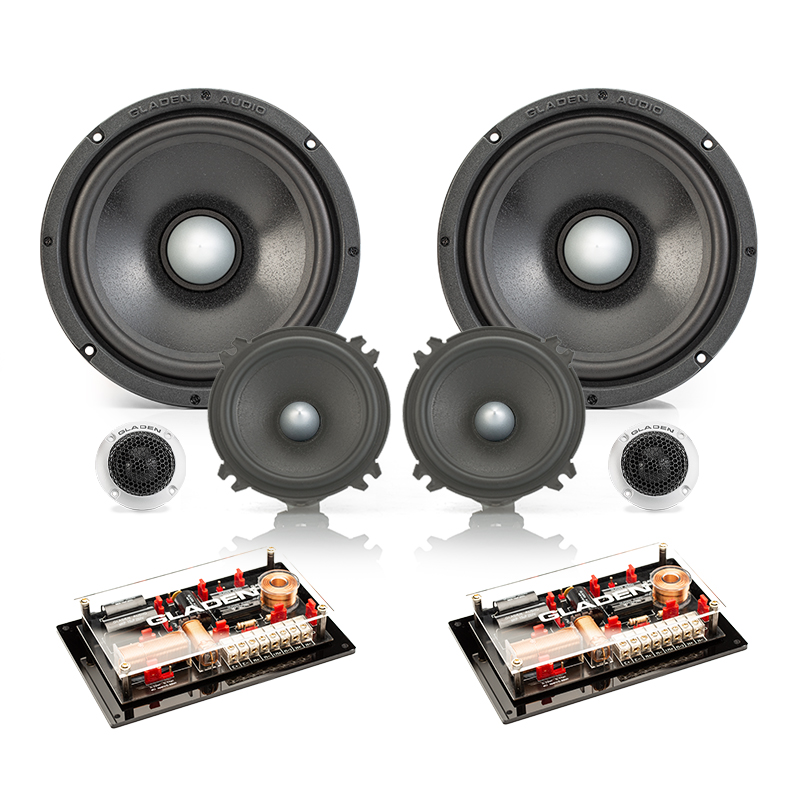

High-end system consisting of a 165 mm bass woofer, an 80mm midrange woofer and a 28 mm dome tweeter (always in pairs).

The woofer has a phase plug in the center. Acoustically, the phase plug ensures that the sound emitted by the cone is not reflected at the pole core. In this case, phase shifting can lead to cancellations that are noticeable as a dip in the midrange.

A passive crossover is included with the speaker system (not with AC active version). The complete Gladen Zero Pro speaker system is designed and built in Germany.

For better alignment or mounting of the tweeter the optional Gladen PODs can be used.

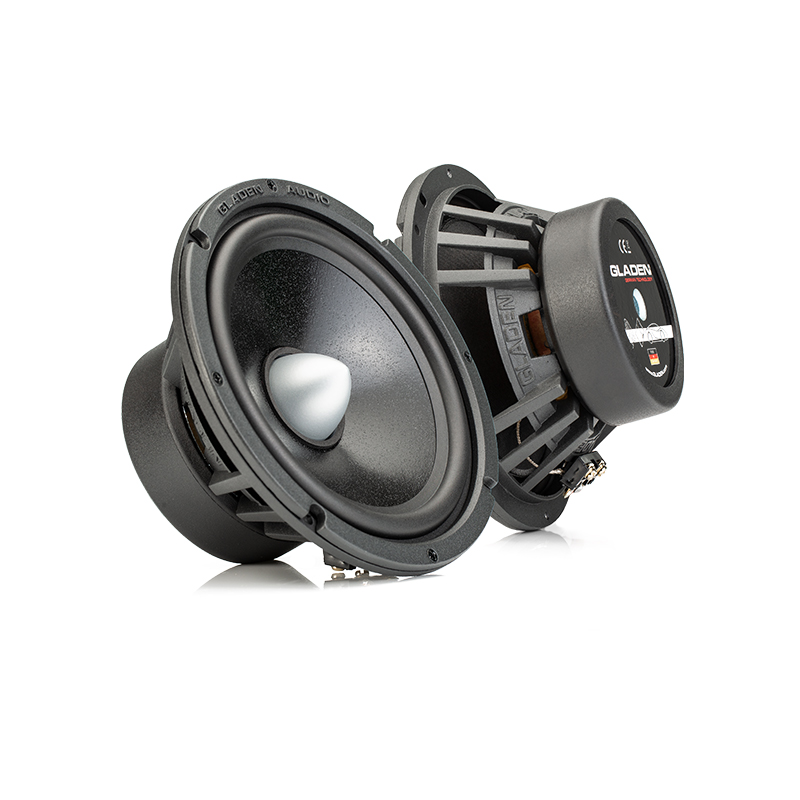

Woofer:

  • Size: 165 mm

  • Sand-coated paper membrane

  • Aluminum basket

  • Nomex spider

  • Phase-plug

  • 38 mm voice coil

  • 3 Ohms impedance

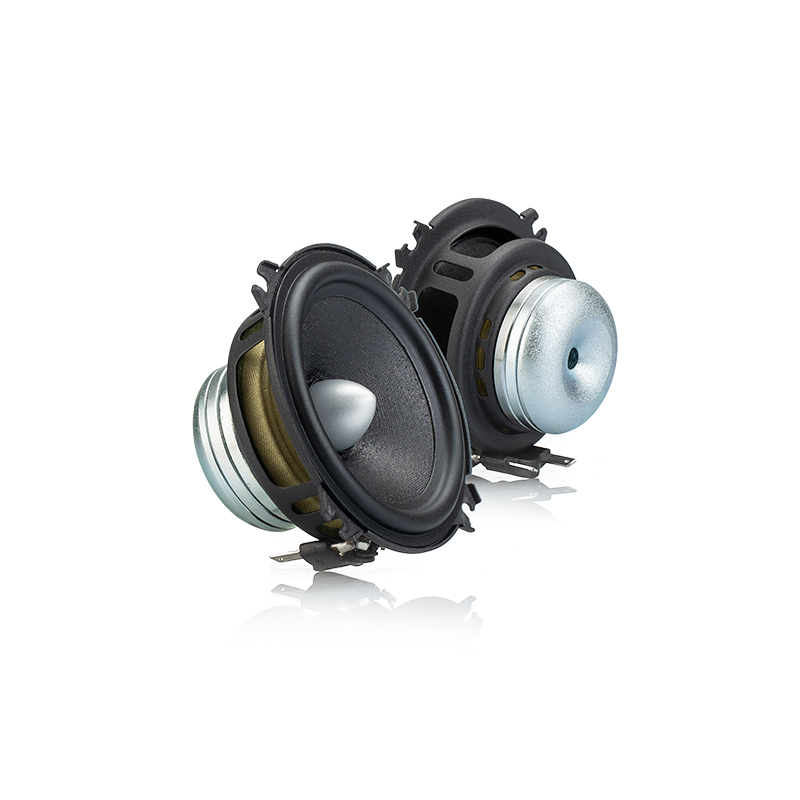

Midrange:

  • Size: 80 mm

  • Sand-coated paper membrane

  • Phase-plug

  • Neodymium magnet

  • Low-profile design

  • 3 Ohms impedance

  • Optional accessories: Speaker Rings & Grilles

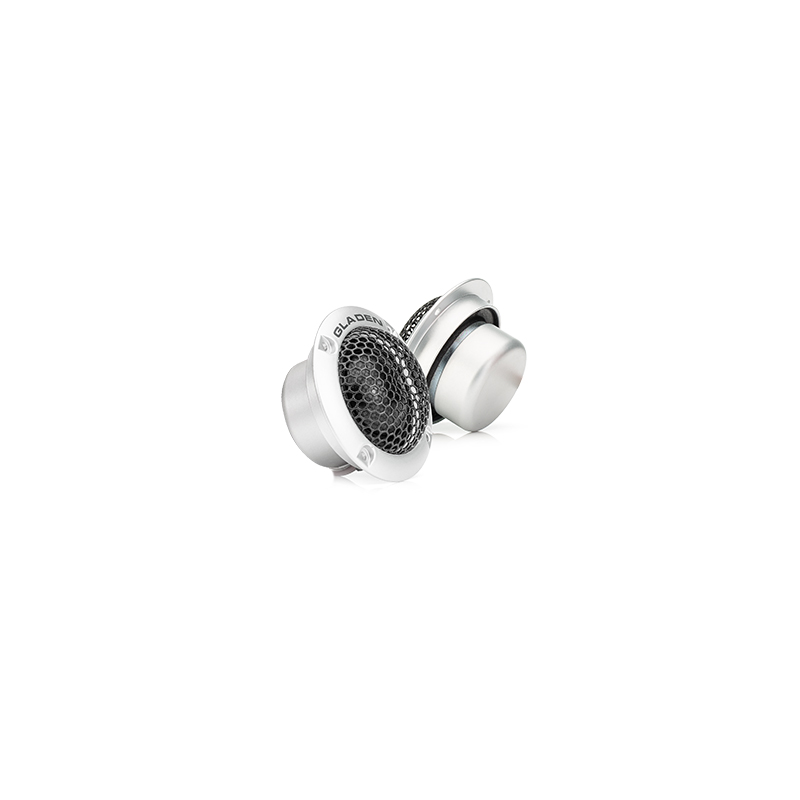

Tweeter:

  • Size: 28 mm (voice coil)

  • Silk fabric membrane

  • Aluminum housing

  • Hexagon-grille

  • 4 Ohms impedance

  • Optional accessories: Gladen PODs

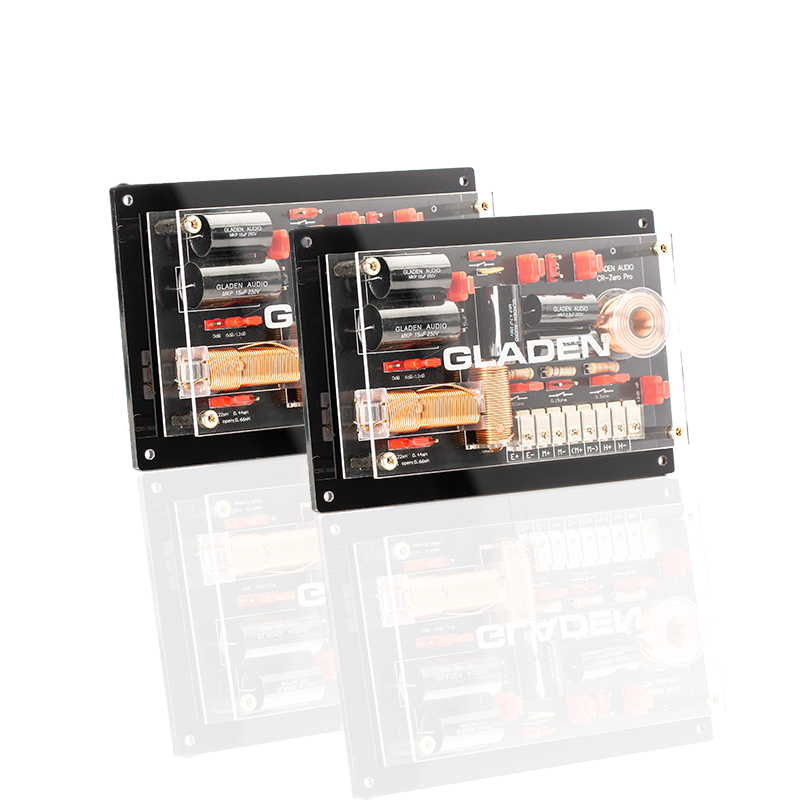

Crossover, not included for active version (AC):

  • Plexiglas housing

  • Over 1.000 setting options

  • Solid and gold-plated screw terminals

  • PTC tweeter protection

  • Gold-plated screw terminals


Technical Data Woofer

  • Cone:
    Paper
  • Spider:

    Nomex

  • Surround:
    Rubber
  • Coil former:

    Aluminum

  • Basket:

    Aluminum

  • Phase Plug:

    Aluminum


Technical Data Midrange Woofer

  • Cone:

    Paper

  • Spider:

    Nomex

  • Surround:

    Rubber

  • Coil former:

    Aluminum

  • Basket:

    Steel

  • Dust Cap:

    Silk


Technical Data Tweeter

  • Cone:

    Silk

  • Coil Former:

    Kapton
