GLADEN SIGMA SM 50

GLADEN SIGMA SM 50

  • 所属分类:扬声器
  • 人气:
  • 价格:¥ 5510
  • 发布时间:2025-06-03
  • 产品概述

Performance midrange | full range driver

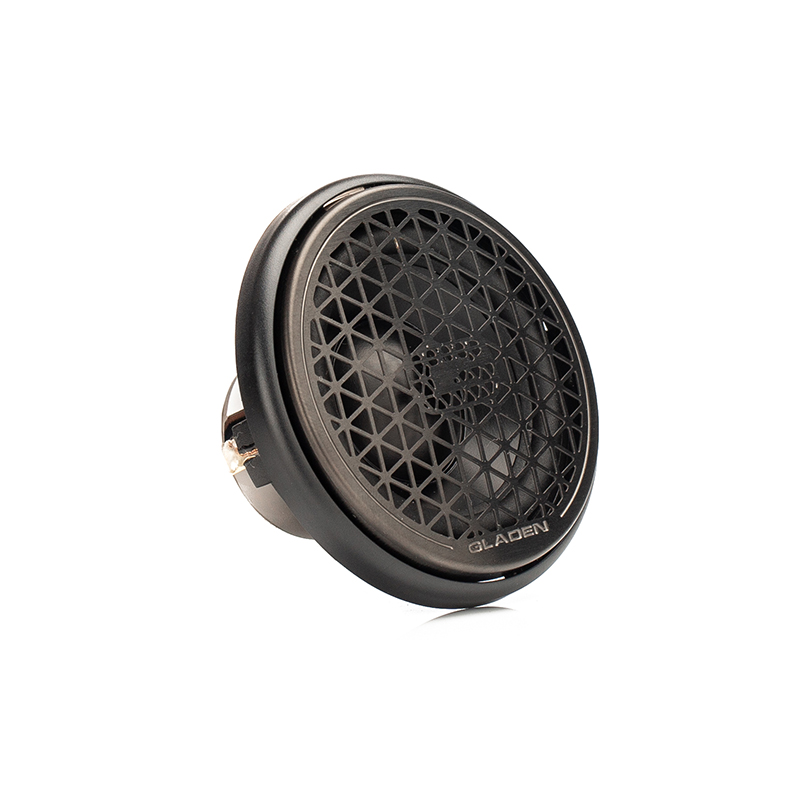

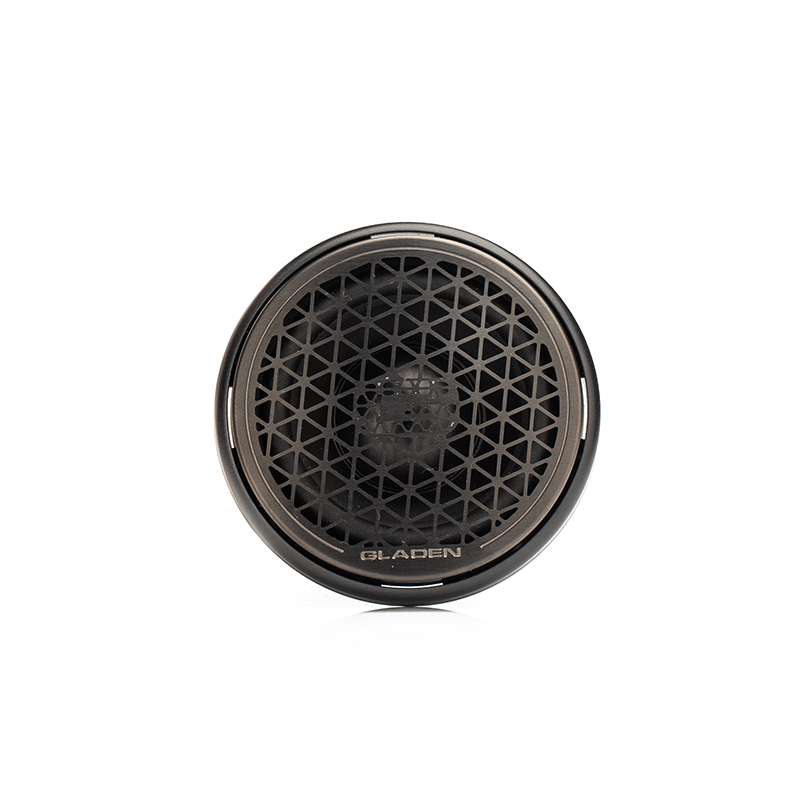

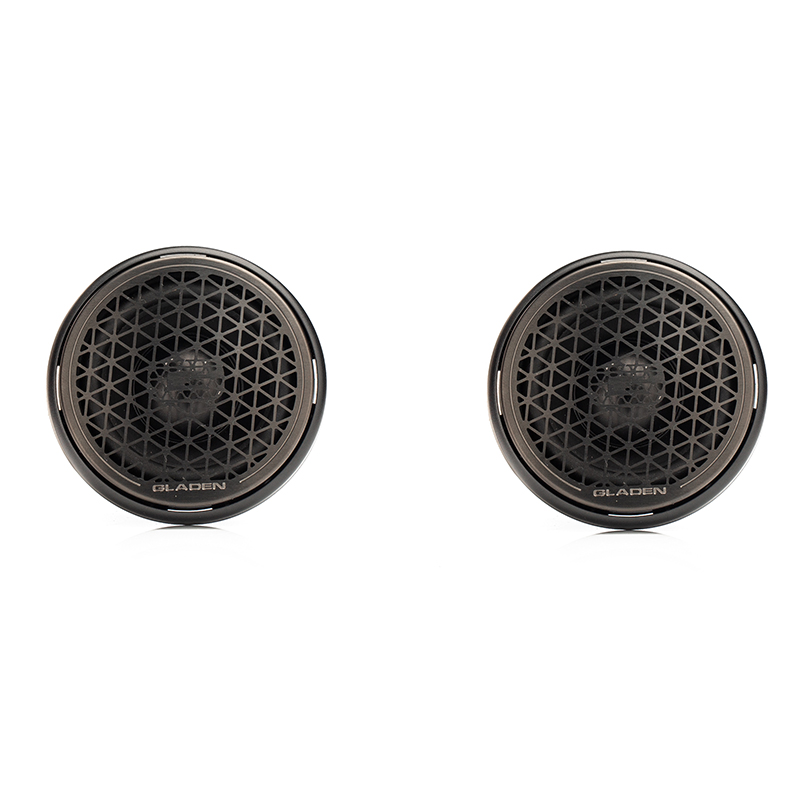

Gladen SIGMA SM 50

  • 50 mm full range | midrange driver

  • 120 / 80 Watts load power handling with active operation

  • 4 Ohm Impedance

  • Available in two grid versions

  • Innovative fastening system


Overview:   Gladen SIGMA SM 50

The SIGMA SM 50 is a high-quality mid-range or full-range loudspeaker.

The SM 50 combines state-of-the-art speaker technology with a unique mounting system. This mounting system allows the loudspeaker to be installed both in custom-made interior designs (e.g. A-pillars) and in confined installation situations in the original openings of a vehicle.

Furthermore, the SIGMA SM 50 is a full-range cone design with accurate reproduction up to over 20 kHz. It has a ventilated voice coil former for reduced distortion and compression. The low-loss suspension (high Qm) ensures better reproduction of details and dynamics.

The scope of delivery includes a hexagon grille for visible installation and an OEM grille (silver brushed | black chrome-plated (optional)) for a perfect look.

GA-SM-50-silver: Item with silver brushed OEM grille
GA-SM-50-black: Item with black chrome-plated OEM grille



Midrange | Full range driver

  • Size: 50 mm

  • Black anodized aluminium membrane

  • Polymer basket

  • Flow-optimized basket design

  • Conex Spider

  • 19 mm Voice coil

  • Sturdy plug-in terminals

  • Alu Dust Cap

  • Neodymium magnet

  • Voice coil former made of glass fiber fabric

  • Frequency response up to over 20000 Hz

  • Rubber surround


Accessories

  • Installation frame with click lock

  • Hexagon Grille

  • OEM Grille


Technical data:   GLADEN SIGMA SM 50

Midrange | Full range driver

  • Diameter:

    50 mm

  • Power handling:

    120 | 80 Watt (300 Hz | 24 dB/Oct.)

  • Impedance:

    4 Ohm

  • Fs:

    135 Hz

  • Re:

    3,2 Ohm

  • Qms:

    7,60

  • Qes:

    0,58

  • Qts:

    0,54

  • Vas:

    0,3 Liter

  • Sq:

    15,6 cm²

  • Mms:

    1,6 g


Installation ring

  • Diameter (outside):

    65 mm

  • Height (with grille):

    7,5 mm

  • Hole diameter:

    51 mm
