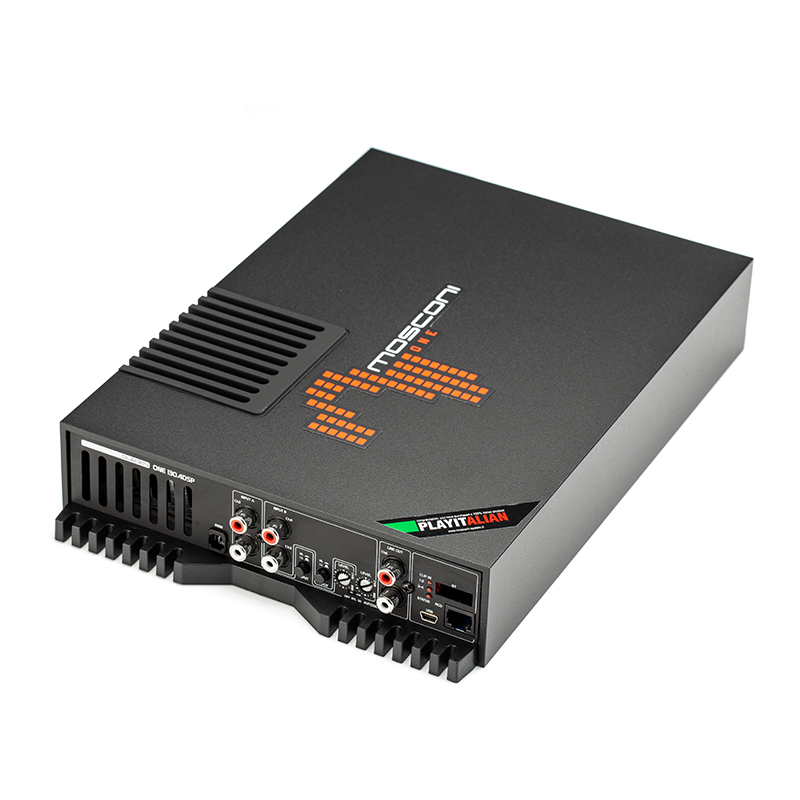

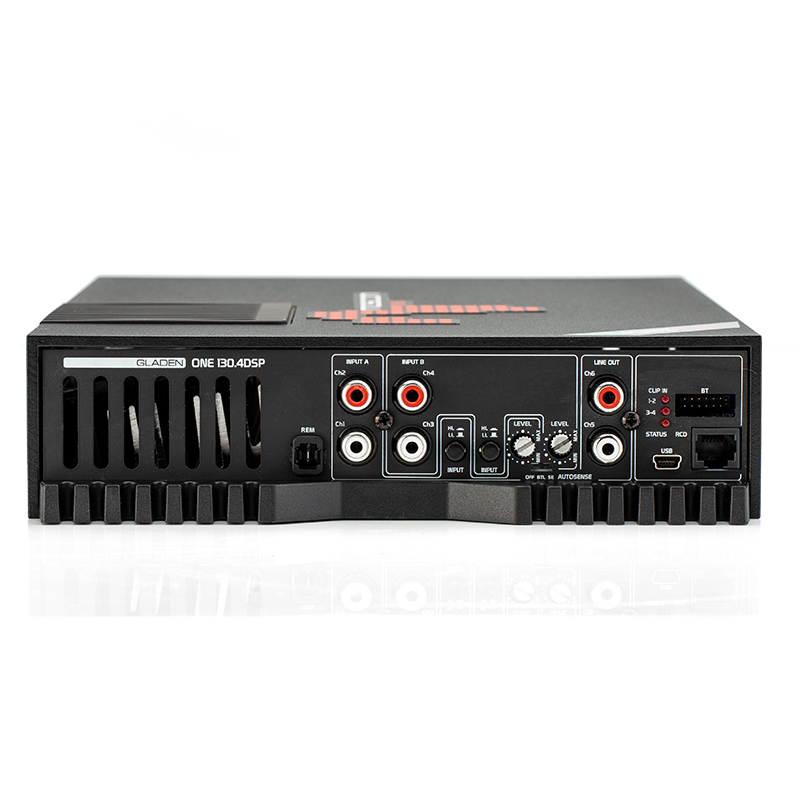

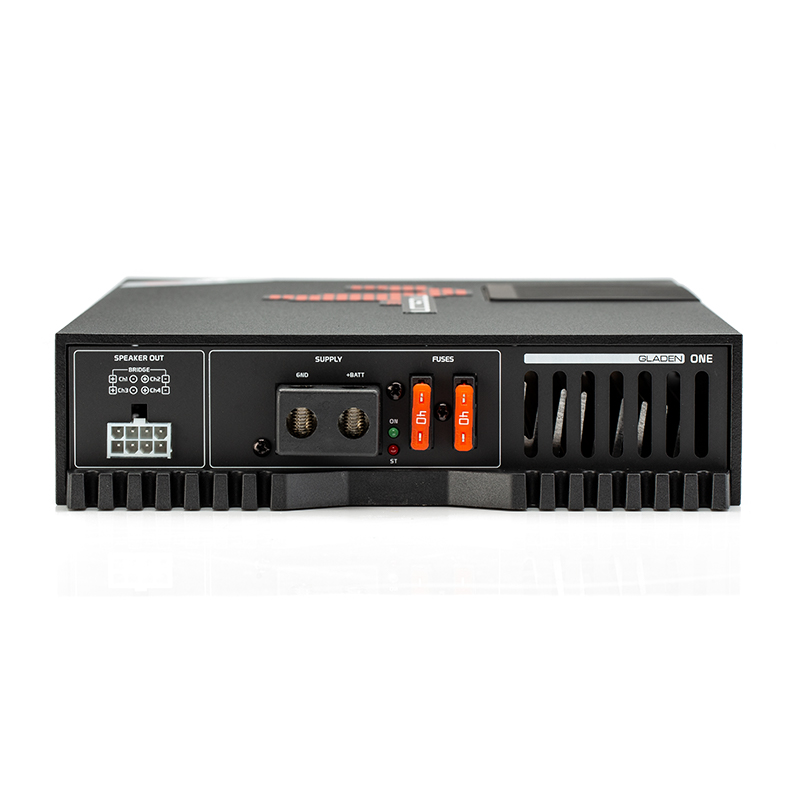

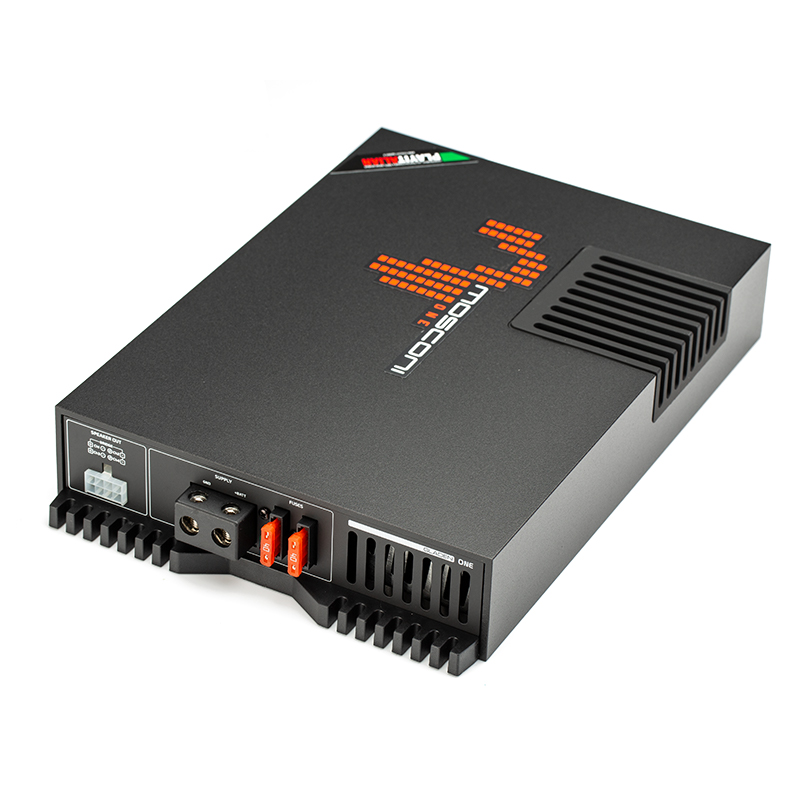

The Mosconi ONE 130.4 is a universal 4 channel high quality power amplifier in Class AB technology and an integrated digital sound processor. It is the ideal power amplifier for speaker systems and/ or medium-sized subwoofers. The digital 6 channel sound processor allows you to adjust your car hifi system perfectly via PC software. In addition to an extensive active crossover, equalizer and a delay correction, various special filters are available. For system expansion, the Mosconi One 130.4 DSP has a processed preamplifier output. Here you can easily connect the "Line IN" of another mono or stereo amplifier.
The One 130.4 DSP is available as a MOLEX version (One 130.4 DSP-M) or with a conventional screw terminal.
Automatic power-on (high level, SE or BTL mode only)
AUX inputs
Auto fading between inputs
Signal mix capability
USB cable for PC connection
BT radio module for PC connection (optional)
GUI (Windows XP and higher, 32 and 64 bit)
Presets: 4
30 bands parametric equalizer
Implemented filter type all standard filters available
HP frequency range for each channel Hz 10 ÷ 20000
LP frequency range for each channel Hz 10 ÷ 20000
Slope of HP and LP filters for each cell dB/Oct 6 to 24 (up to 48 when cascaded)
