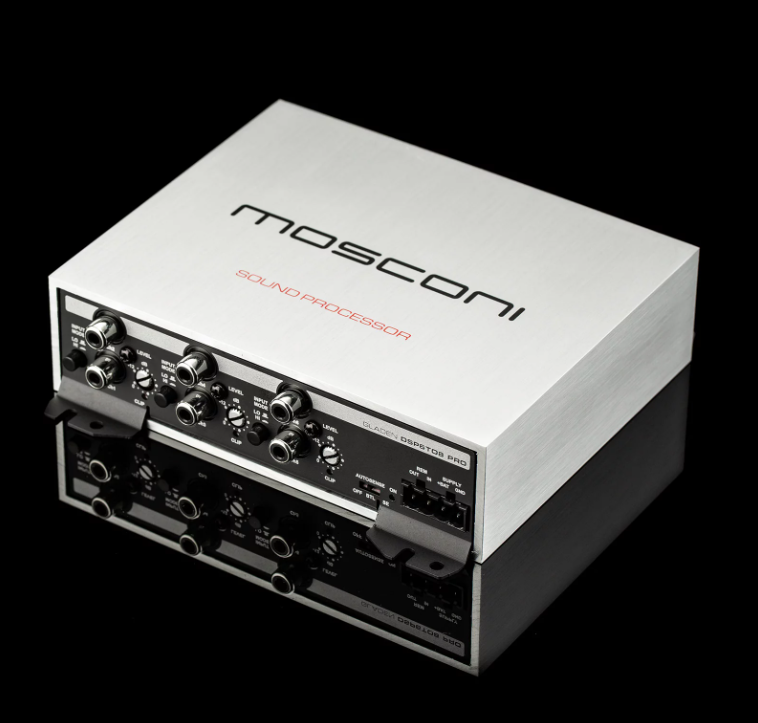

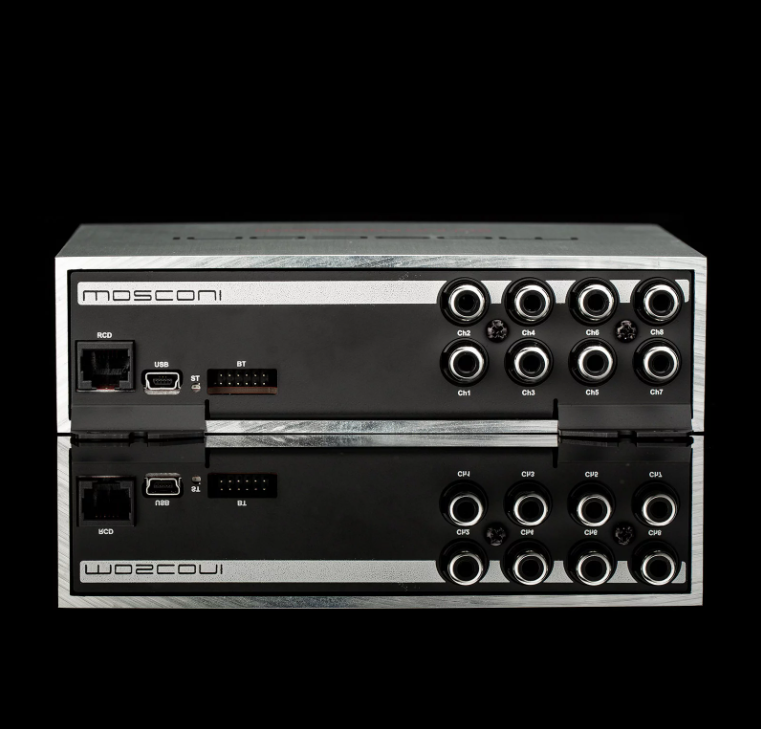

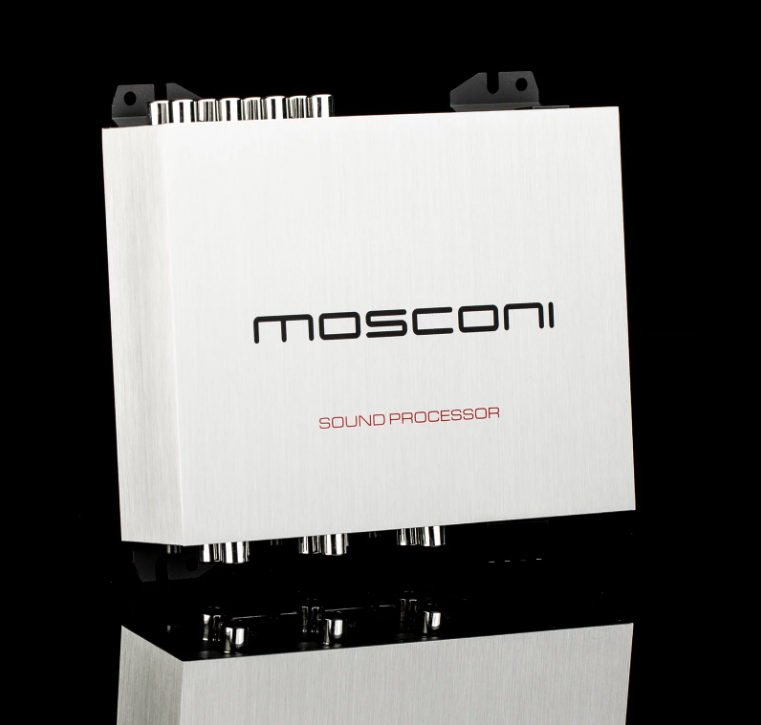

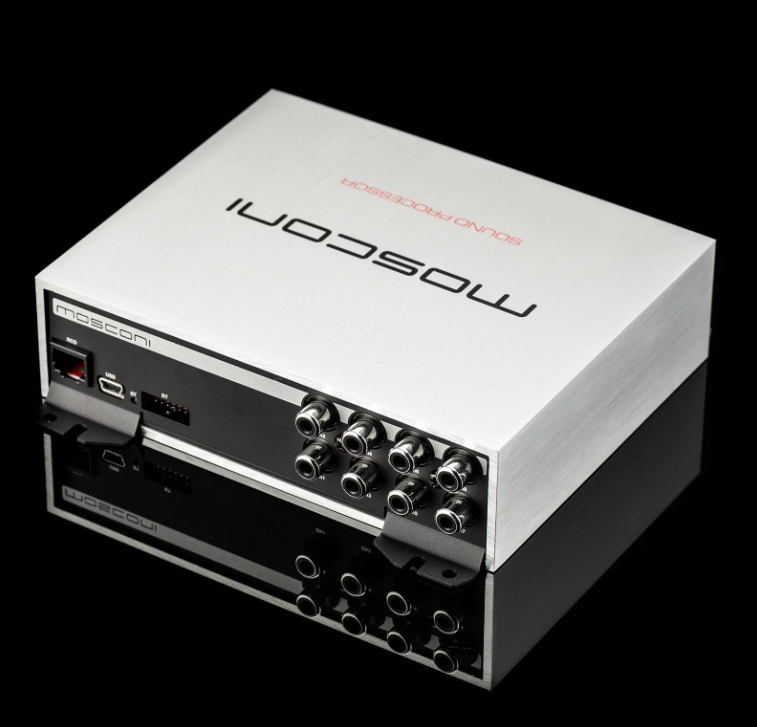

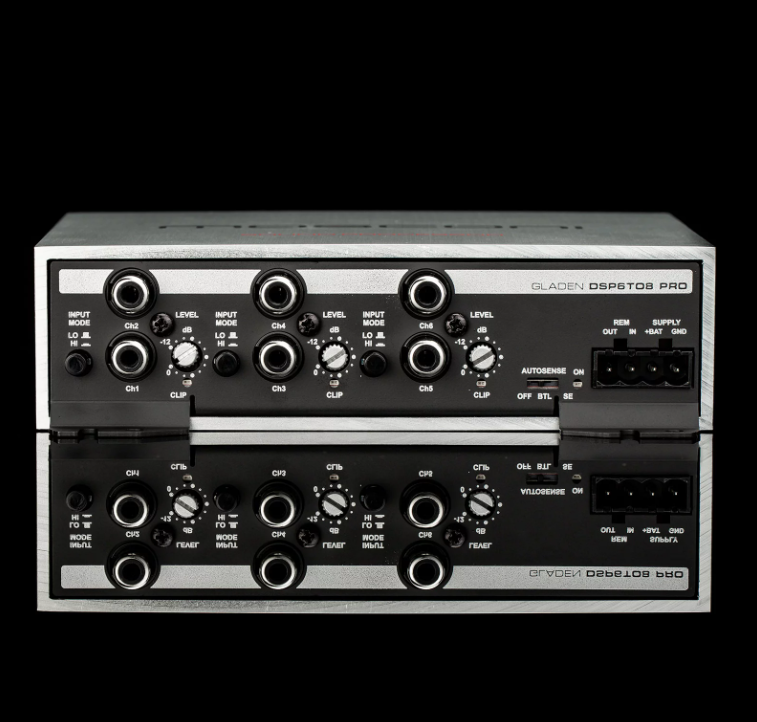

Digital Signal Processor
6-channel input
8-channel output
48 kHz / 24 bit High Resolution-Audio
6 x RCA (Cinch), switchable high/low level with autosense
1 x BT interface, (only compatible with BTM)
2 of them freely selectable as prioritized auto-fade/aux
ATOM Mixer menu with dynamic preset switching and "trigger" control
12 V remote-out / autosense at high level signal
Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
Fixed: Channels Front (1 - 4)
Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free
5 per channel freely configurable
Highpass, lowpass, shelf, notch, allpas, peak EQ
Slope 6 - 120 dB/oct, variable Q, time and level
Time correction 0 - 12 ms (0.020 ms steps)
Input delay (channels 1 - 6) for correction of run-time delayed factory systems
Phase shift 0 - 180°
Level adjustment outputs (0.5 - dB steps)
Mute function
4 x preset memory (switching without sound interruption)
Dimensions: 150 x 125 x 40 mm (incl. mounting flange)
