MOSCONI DSP 8TO12 AEROSPACE

MOSCONI DSP 8TO12 AEROSPACE

  • 所属分类:DSP
  • 人气:
  • 价格:¥10245
  • 发布时间:2023-11-20
  • 产品概述

Mosconi DSP 8to12 Aerospace

  • 8-channel input

  • 12-channel output


Overview Mosconi DSP 8to12 Aerospace

92 kHz/24 Bit 4K High Resolution-Audio

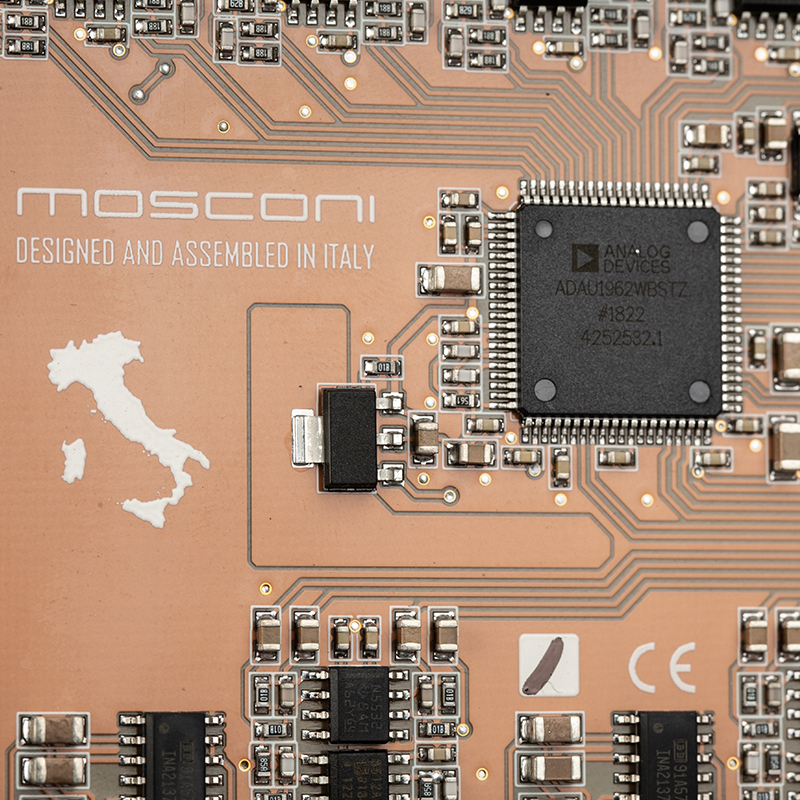

With the incredibly powerful chip, the GLADEN DSP 8to12 AEROSPACE is faster than ever.

We have developed the best DSP since MOSCONI exists.

No limit in signal processing...192 kHz /24 bit "A GAME CHANGER".

High Resolution BT Pure Digital Direct Streaming

You love music in highest sound quality!

Play your music lossless with the optional MOS-BTS. The best part is, it happens wirelessly via BT. Just start your music on your smartphone or tablet and the DSP just plays it. How the DSP knows what to do... ATOM Auto Fade Trigger Option Menu!


Technical Data Mosconi DSP 8to12 Aerospace

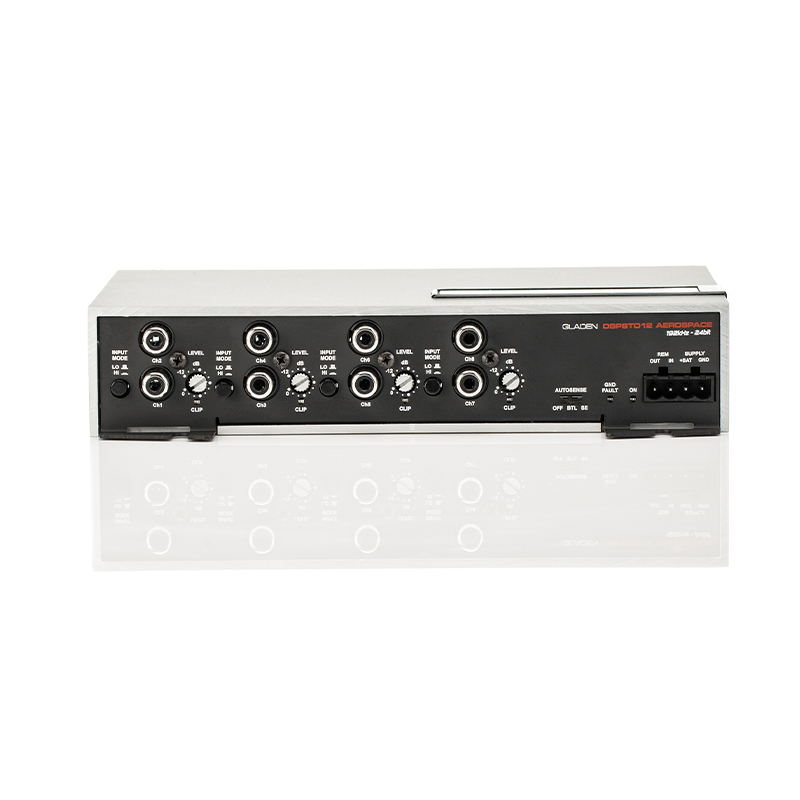

Inputs:

  • 8 x RCA (Cinch), switchable high / low level with autosense

  • 4 of them freely selectable as prioritized Auto-fade/Aux

  • 1 x S/PDIF digital optical

  • 1 x RCA digital COAX

  • 1 x BT slot

  • ATOM Mixer menu with dynamic preset switching and "trigger" control

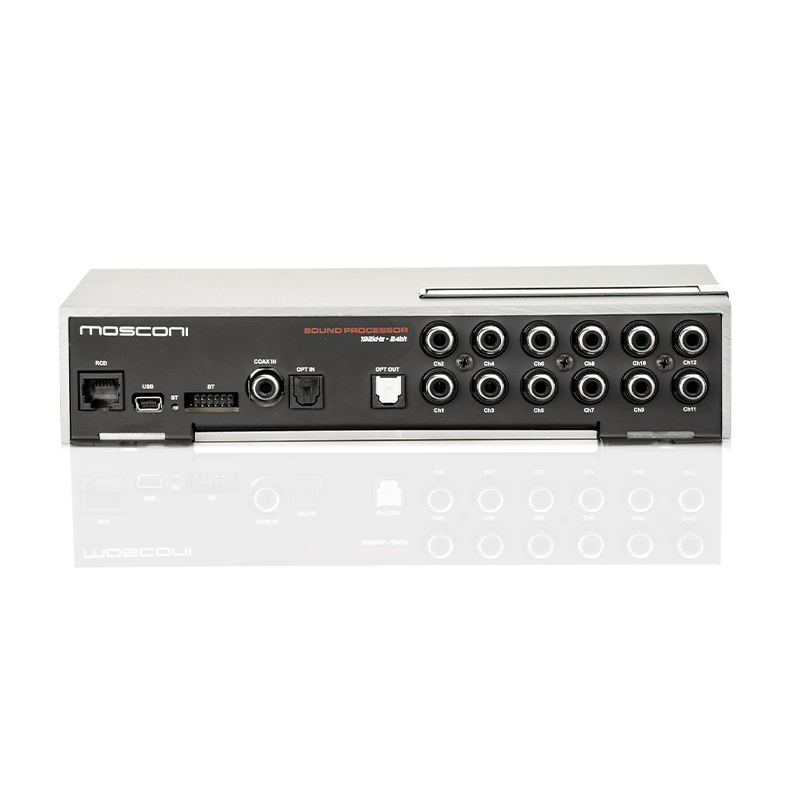

Outputs:

  • 12 x RCA analog
  • 1 x S/PDIF optical (freely assignable, volume controlled)

  • 12 V remote-out


Equalizer:

  • Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40

  • Fixed: channels front (1 - 6) channels rear (9 + 10)

  • Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free


Filters:

  • 10 per channel freely configurable, (setting without sound interruption)

  • Highpass, lowpass, shelf, notch, allpas, peak EQ

  • Slope 6 - 120 dB/Oct, variable Q, time and level


Other:

  • Time correction 0 - 12 ms (0.005 ms steps) (setting without sound interruption)

  • Input-Delay (Channels 1 - 6) for the correction of runtime-delayed plant systems

  • Phase inversion 0 - 180°

  • Level adjustment outputs (0.5-dB steps)

  • Mute function

  • 4 x preset memory (switching without sound interruption)

  • Dimensions: 200 x 125 x 40 mm (incl. mounting flange)
