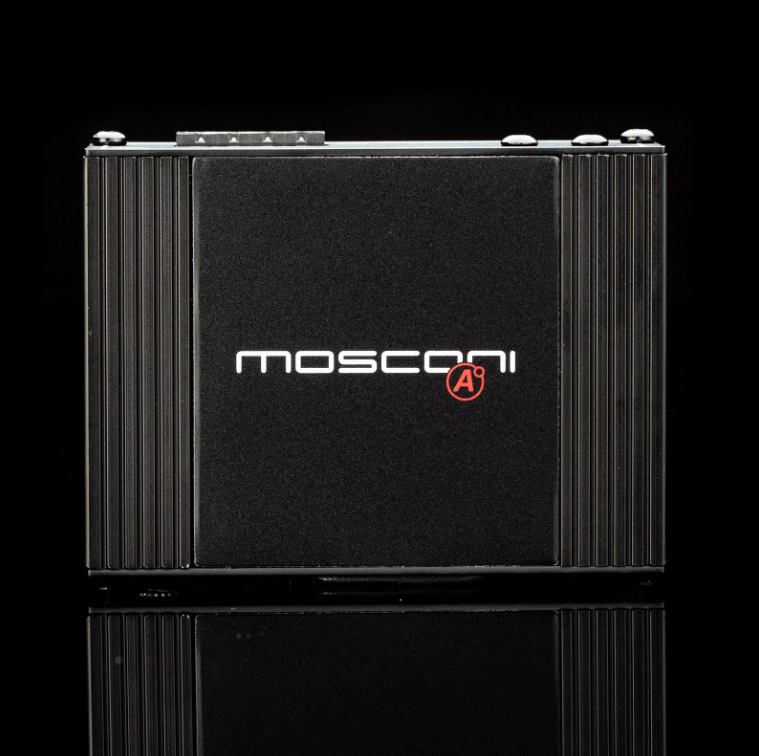

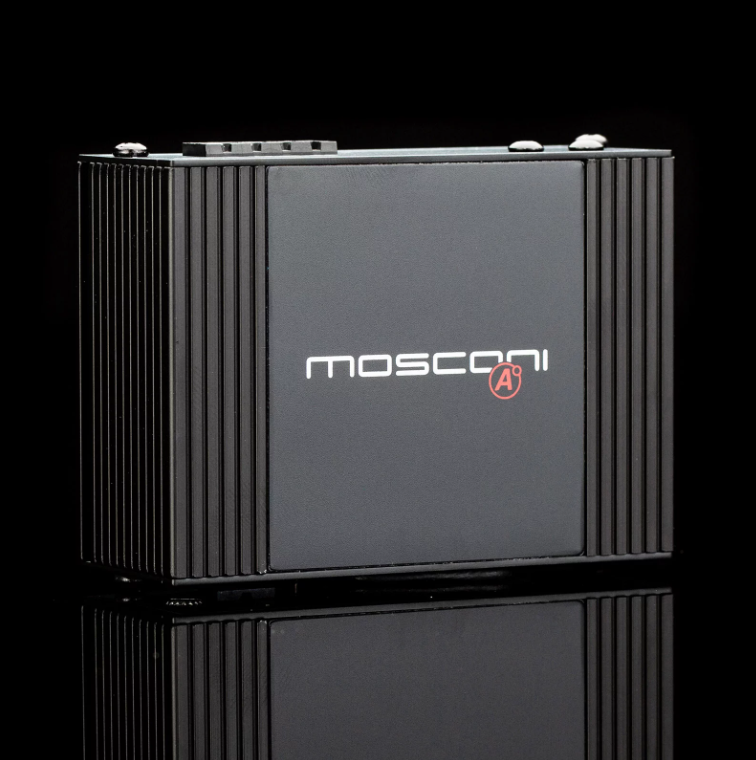

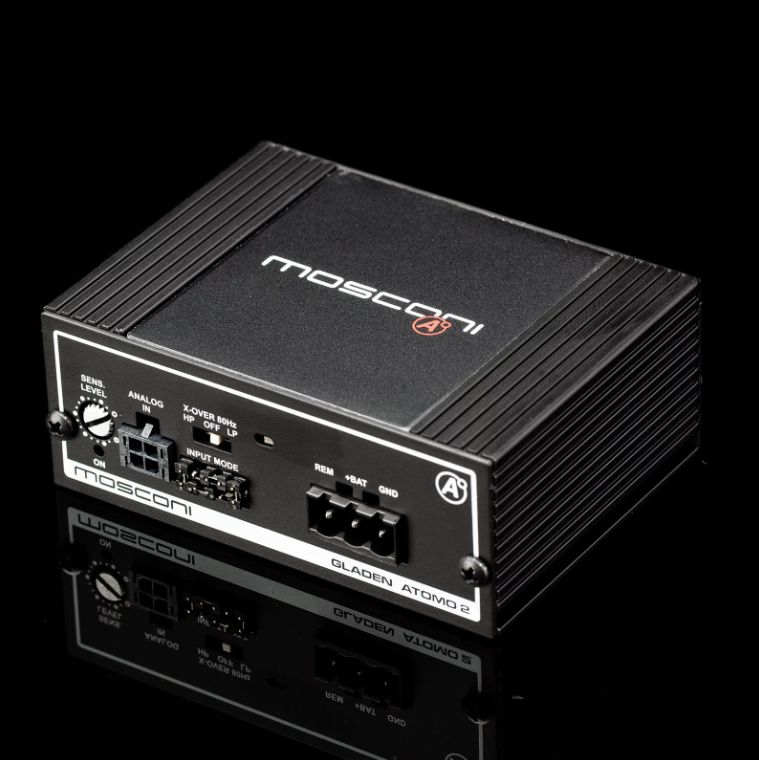

MOSCONI ATOMO 2

MOSCONI ATOMO 2

  • 所属分类：功放
  • 人气：
  • 价格：￥6745
  • 发布时间：2023-11-20
我要咨询
  • 产品概述

2-channel amplifier

Mosconi Atomo 2

  • Class D amplifier

  • 2 x 100 Watts @ 4 Ohm

  • 12 V and 24 V versions

Overview Mosconi Atomo 2

ATOMO 2 - Maximum performance in the smallest of spaces

  • Extremely compact, powerful 2-channel amplifier

  • Wide input voltage range 0.4 Vrms - 5 Vrms (low level) / 1.6 Vrms - 20 Vrms (high level)

  • Inputs flexibly configurable (floating / fixed ground, switchable load resistors)

  • Remote detection (BTL)

  • High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit)

  • 12 V and 24 V versions

Technical Data Mosconi Atomo 2

POWER SUPPLY:

  • Power supply voltage:

    10 - 16 V

  • DC-DC converter typology:
    Unregulated – Push Pull
  • External fuse:

    1 x 15 A

  • Power-on/Power-off voltage threshold:

    9 V / 6 V

  • Mute delay time:

    3 secs

  • Autosense power-on (HL only):
    BTL source only
  • Overall efficiency:

    > 75 %

  • Standby current:

    < 0.1 mA (typical)

  • Idle current:

    0.47 A @ 14.4 V

  • Thermal cutoff threshold:

    93 °C (± 5 %)

OUTPUT POWER RMS @ 14.4 V (1 % THD)

  • Output power RMS @ 4Ω:

    100 W x 2 or 220 W x 1

  • Output power RMS @ 2Ω:

    110 W x 2

  • T.H.D. @ 4Ohm:

    < 0.3 % (1 kHz / 90 Power rating ref)

  • T.H.D. @ 2Ohm:

    < 0.5 % (1 kHz / 90 Power rating ref)

  • Minimum load:

    2 Ohm with musical signal

SIGNAL INPUT

  • Low level input sensitivity range:

    0.4 ÷ 5 Vrms

  • High level input sensitivity range:

    1.6 ÷ 20 Vrms

  • Bandwidth (-3dB ÷ 10W):

    5 Hz ÷ 40 kHz

  • Low level Input impedance:

    > 15 kOhm

  • High level input impedance:

    21 Ohm (dummy load with jumper)

  • Ground reference (LL only):
    OPEN - 21Ohm
  • S/N (AP filter 10Hz - 22KHz):

FEATURES

  • Onboard filter configuration:
    OFF - HP - LP
  • Onboard filter slope:

    12 dB/Oct

  • Onboard filter frequency:

    80 Hz

  • Autosense power-on (HL only):
    BTL source only
  • Start&Stop compliance:
    YES

CONNECTIONS

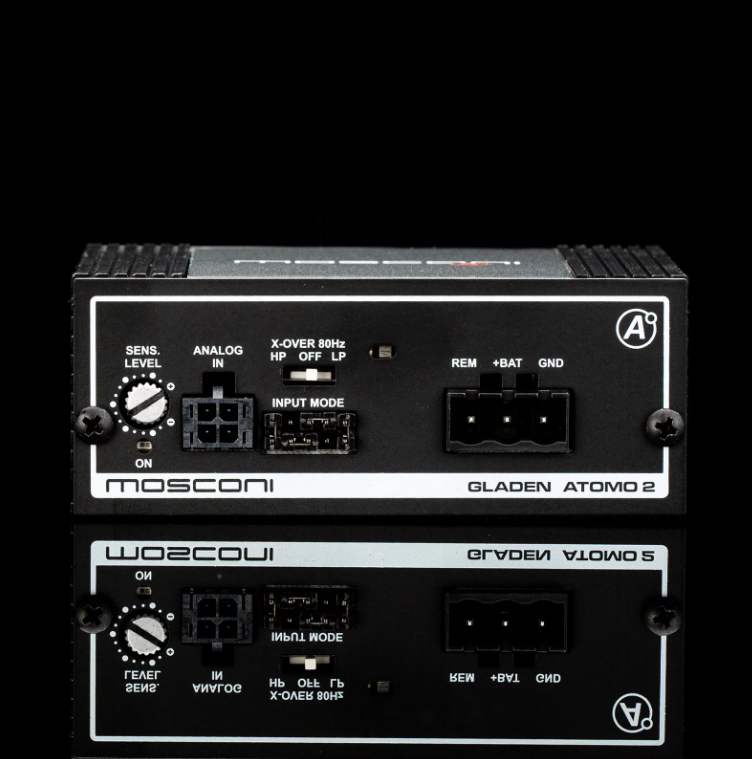

  • Low/High level input :
    Micro-Fit

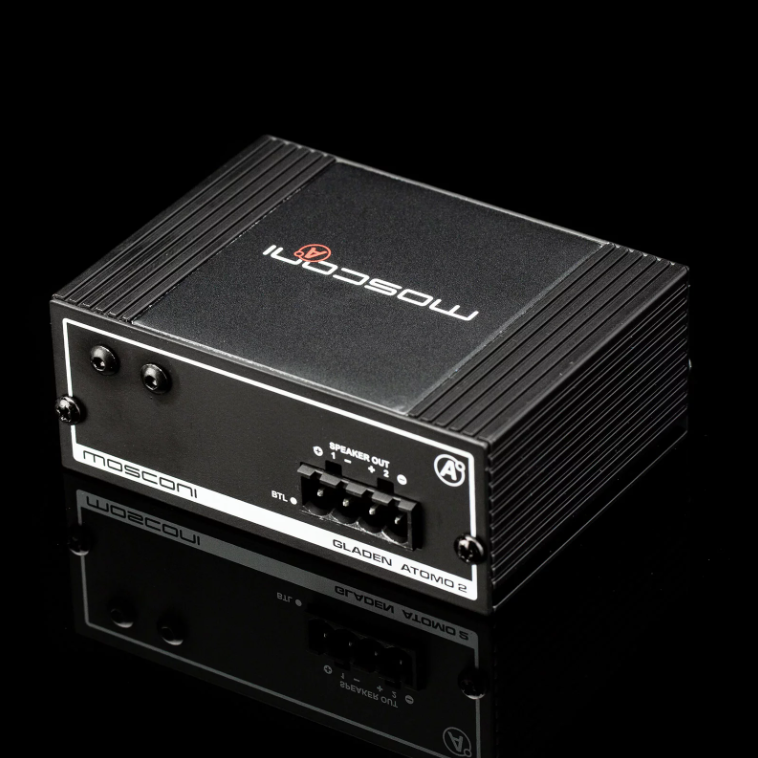

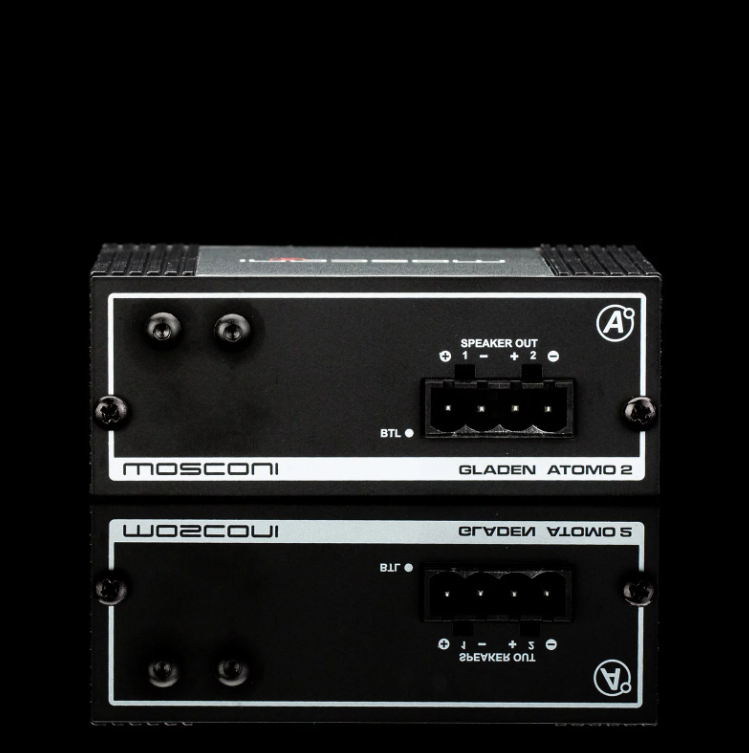

  • Speaker out:
    Mini-Fit
  • Power supply:
    Mini-Fit

APPEARANCE

  • Dimensions:

    86 x 65 x 34 mm

  • Weight:

    275 g

  • Finishing:
    Black anodized

Download

Datasheet Mosconi Atomo 2 (PDF)
Manual Mosconi Atomo 2 (PDF)
