MOSCONI PICO 4

所属分类：功放
人气：
价格：￥5430
发布时间：2023-11-20

我要咨询

产品概述

4 channel PWM amplifier

Mosconi Pico 4 / Pico 4 SA

4 channel amplifier
Class D technology
Up to 480 Watts total power
Pico 4 also available as 24 Volt version

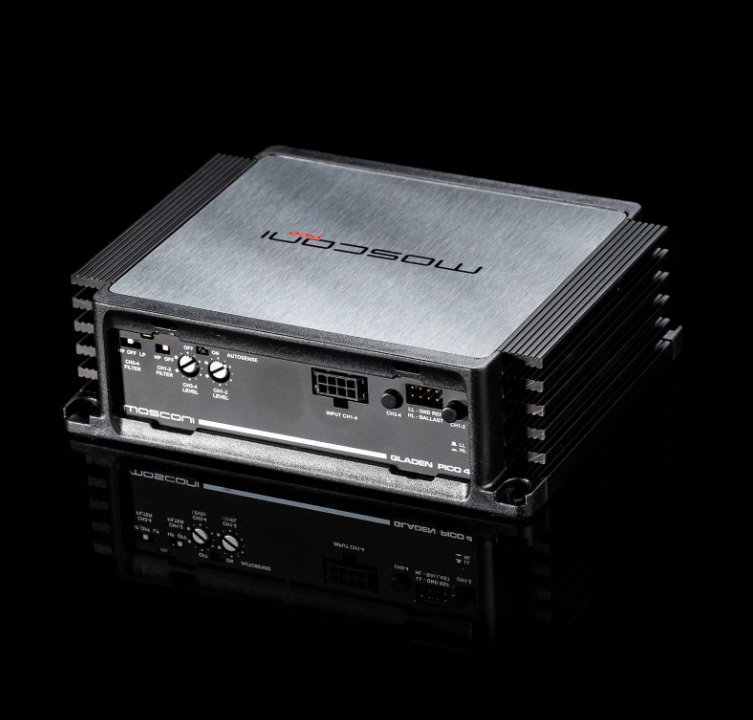

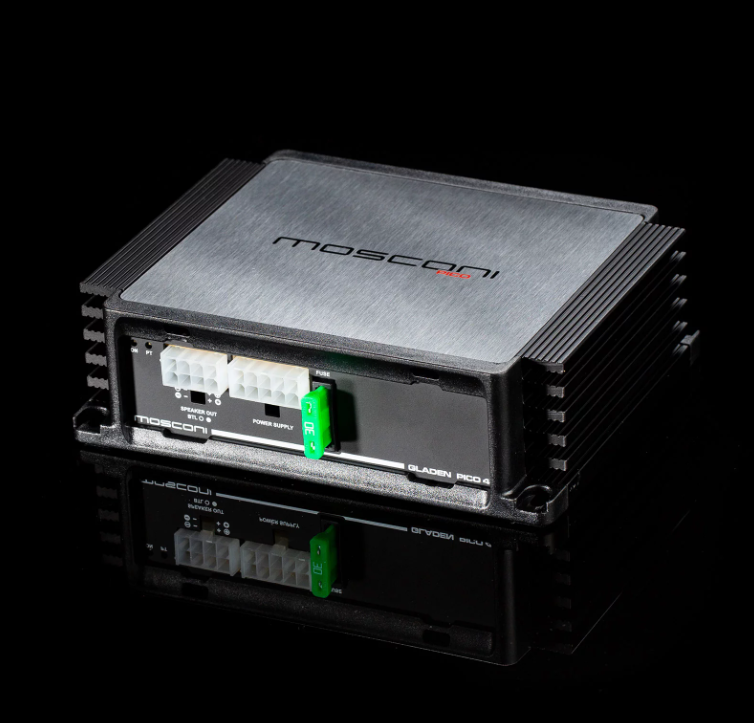

Overview Mosconi Pico 4 / Pico 4 SA

Four channel full range PWM amplifier with separate synchronized modulation. Up to 480 Wrms total power, bridgeable and 2-Ohm stable. Thus, the Mosconi PICO 4 masters any constellation: whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with dual voice coil. Ideal supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

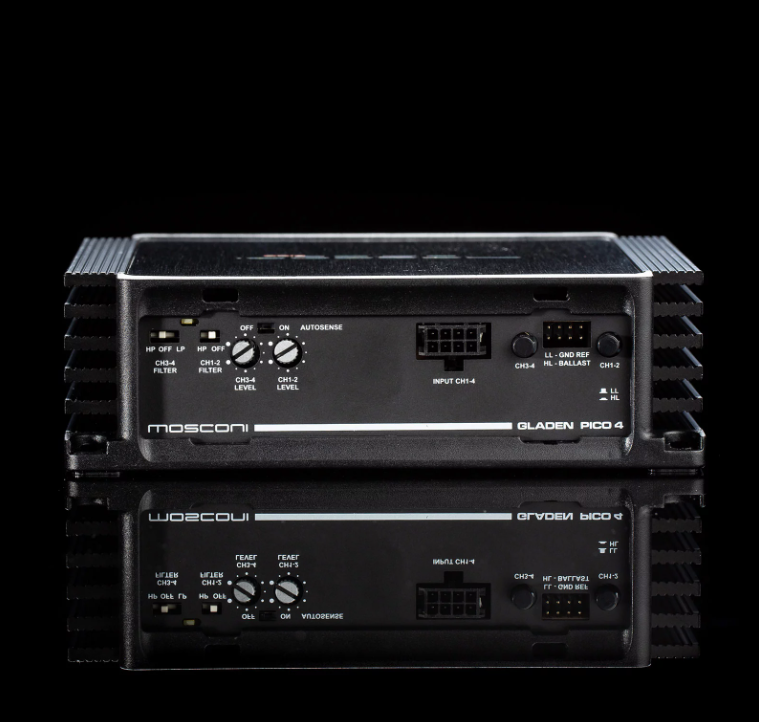

Active crossover

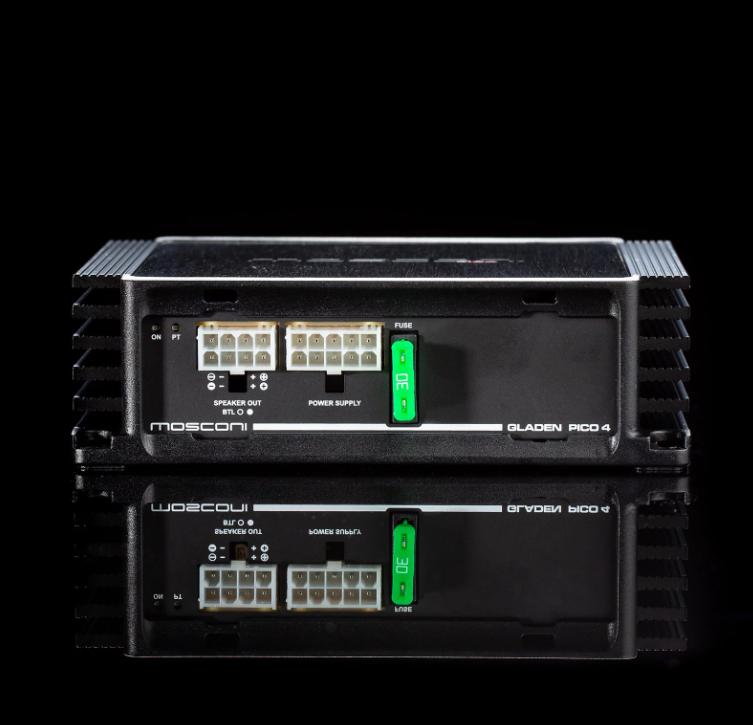

Molex connectors
Compact design
High current efficiency
Crossover for semi active operation (Pico 4 SA)
Available as 24 Volt version (Pico 4 only)

Technical Data Mosconi Pico 4 / Pico 4 SA

OUTPUT POWER:

Output power RMS @ 4Ω:
4 x 90 Watts
Output power RMS @ 2Ω:
4 x 120 Watts
Output power RMS @ 4Ω:
2 x 85 Watts + 1 x 245 Watts (bridged)
Output power RMS @ 4Ω:
2 x 240 Watts (bridged)

Specifications:

Input voltage:
0.3 - 20 V
Overall efficiency:
> 75 %
Auto-On (only High Level):
Off - BTL
Channel 1+2 Filter (HP) :
Off – 80 Hz (12 dB/Oct)
Channel 3+4 Filter (HP/LP):
Off – 80 Hz (12 dB/Oct)
Channel 1+2 Filter (HP):
Off – 280 Hz (12 dB/Oct) - Pico 4 SA
Channel 3+4 Filter (HP/LP):
Off - 220 Hz (12 dB/Oct) - Pico 4 SA
Dimensions:
150 x 115 x 46 mm
Weight:
1050 Gramm

Download

Datasheet Mosconi Pico 4 (PDF)

Manual Mosconi Pico 4 (PDF)
