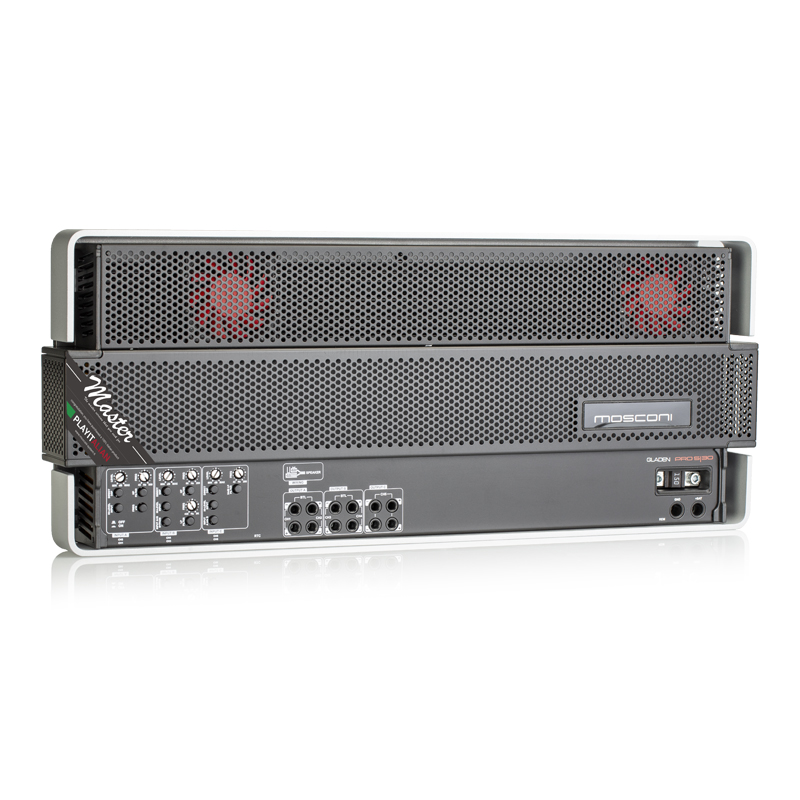

MOSCONI PRO 5|30

MOSCONI PRO 5|30

  • 所属分类:功放
  • 人气:
  • 价格:¥20310
  • 发布时间:2023-11-20
  • 产品概述

5 channel high performance amplifier

Mosconi PRO 5|30

  • 5 channel amplifier

  • Class AB technology with Class D mono output

  • Asymmetrical power output


Overview Mosconi pro 5|30

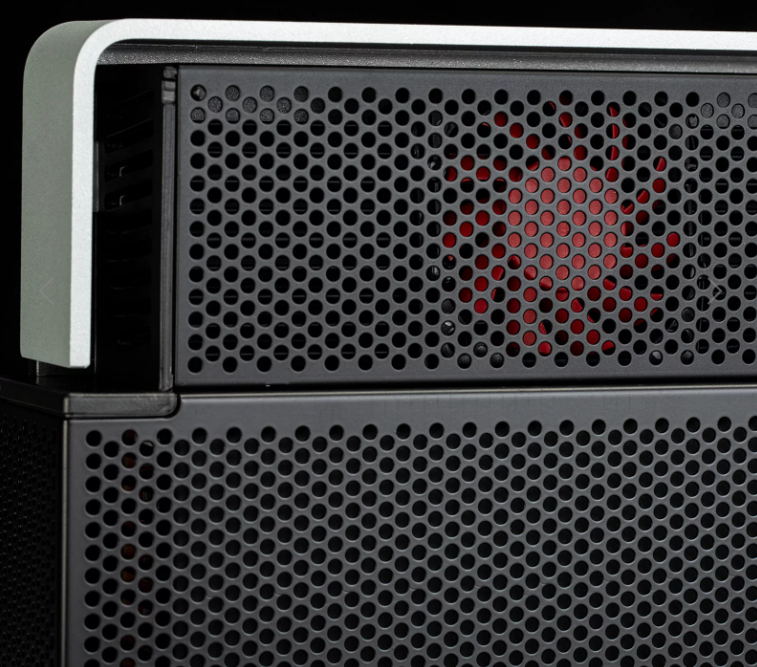

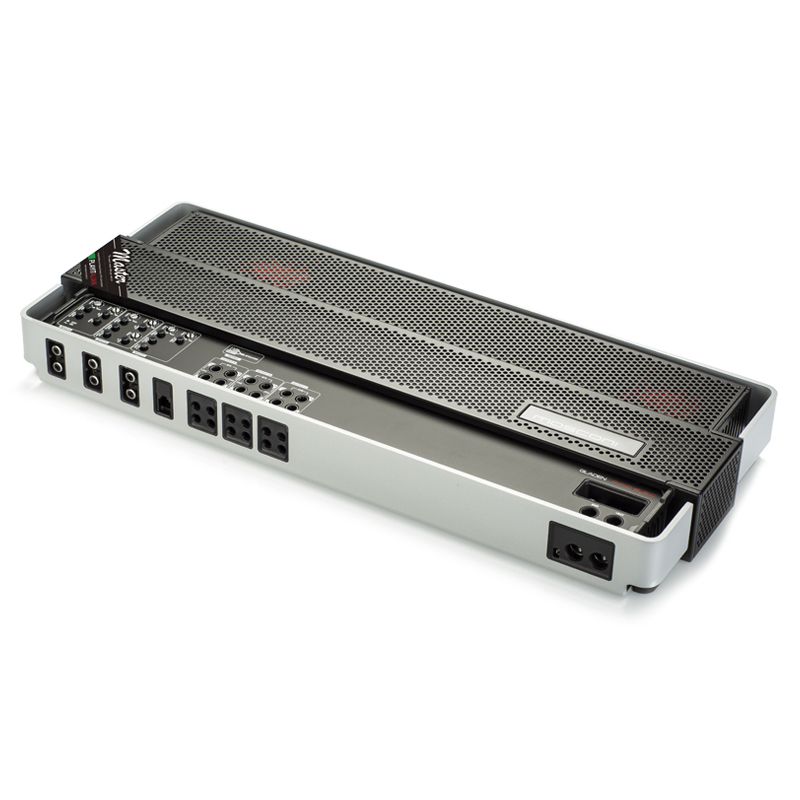

The MOSCONI PRO 5|30 already signals the high-end claim with its design: With rounded aluminum edges and contrasting black perforated sheet insert with illuminated logo, the amplifier looks very noble. The eye finds numerous steps and recesses on which the gaze lingers without the whole thing looking jagged. The Mosconi Pro 5|30 is a hybrid amplifier in a class of its own. With it, extensive system configurations can be realized. With its asymmetrical power distribution, it is, in conjunction with a digital sound processor, perfectly created for active operation.

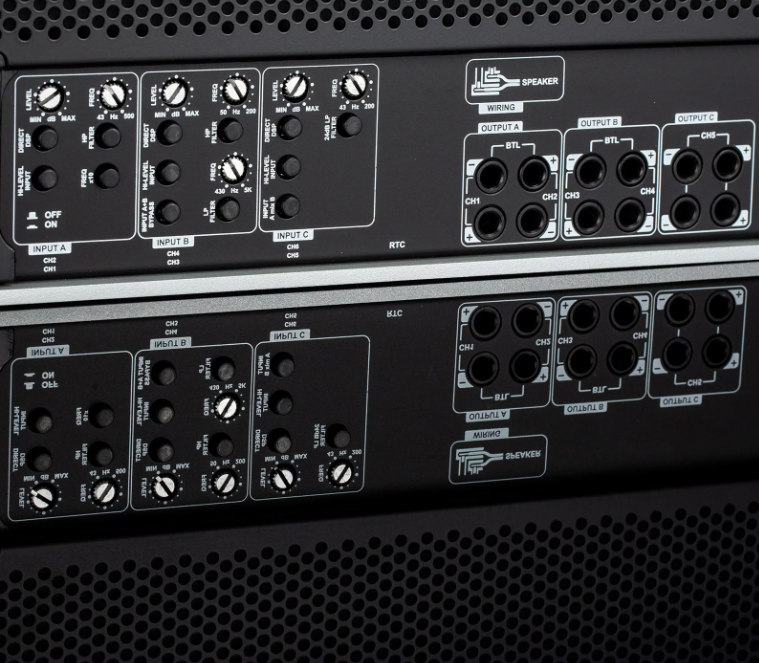

  • Direct DSP (bypassing all preamplifier circuits)

  • High level / low level selectable input

  • Autosense (only in BTL mode)

  • RTC - Allows volume regulation by remote control (optional)

  • Power supply and temperature management controlled by microprocessor


Technical Data Mosconi Pro 5|30

Output Power:

  • Output power @ 4Ω:

    2 x 95 + 2 x 185 + 1 x 660 Watts

  • Output power @ 2Ω:

    2 x 150 + 2 x 290 + 1 x 1030 Watts


Specifications:

  • Input sensitivity:
  • 0.35 V ÷ 12 V (5.3 V in DDSP mode) [CH 1/2/3/4]

  • 0.14 V ÷ 5.9 V (3.1 V in DDSP mode) [CH 5]

  • Dimensions:

    500 x 205 x 55 mm

  • Weight:

    5,4 kg

  • Crossover:
  • CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)

  • CH 3/4 = HP: 50 ÷ 200 Hz & LP: 430 ÷ 5000 Hz

  • CH 5 = LP: 43 ÷ 200 Hz

  • Signal to Noise Ratio:

    > 83 dBA (ref: 1 Watt into 4 Ohm)
