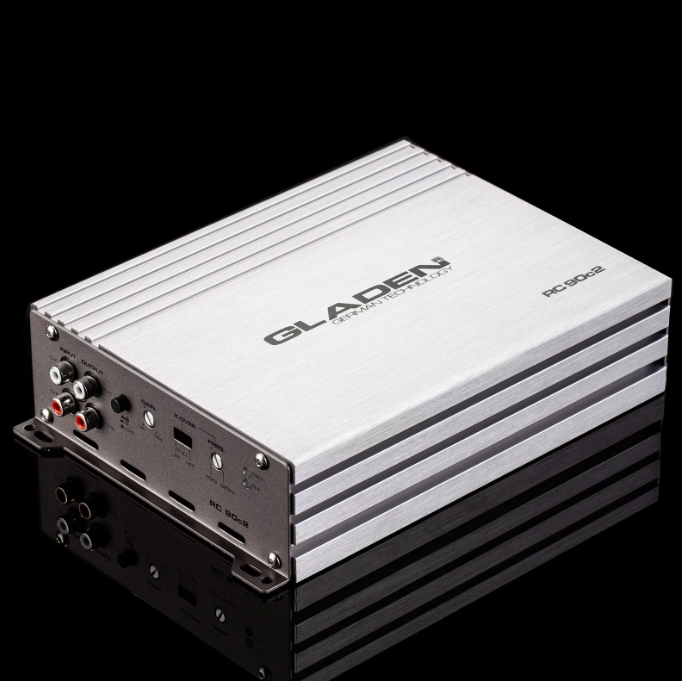

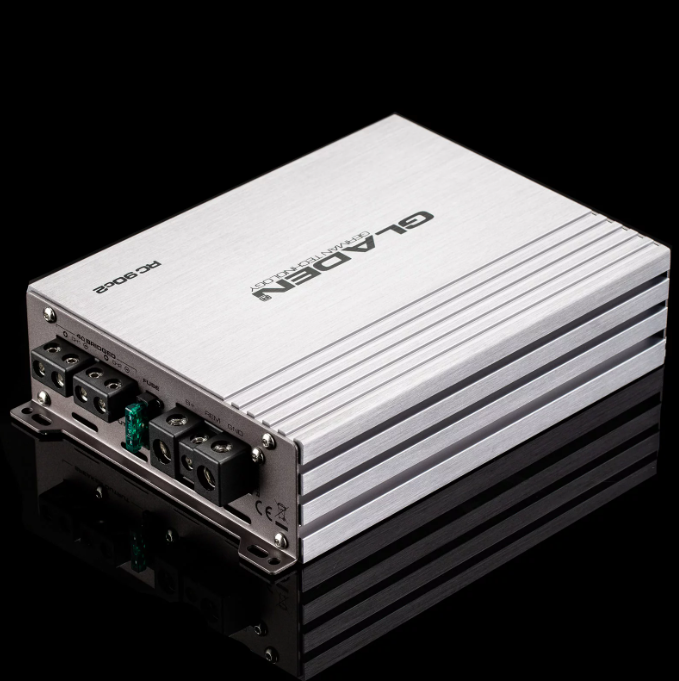

GLADEN RC 90 C2

GLADEN RC 90 C2

  • 所属分类：功放
  • 人气：
  • 价格：￥2900
  • 发布时间：2023-11-23
我要咨询
  • 产品概述

2-channel amplifier

Gladen RC 90c2

  • 4 Ohm: 2 x 85 Watts

  • 4 Ohm bridged: 1 x 260 Watts

  • Class A/B

Overview Gladen RC 90c2

  • 2-channel amplifier Class A/B

  • High-level with auto sense

  • Double-sided PCB and

  • SMD components

Functions:

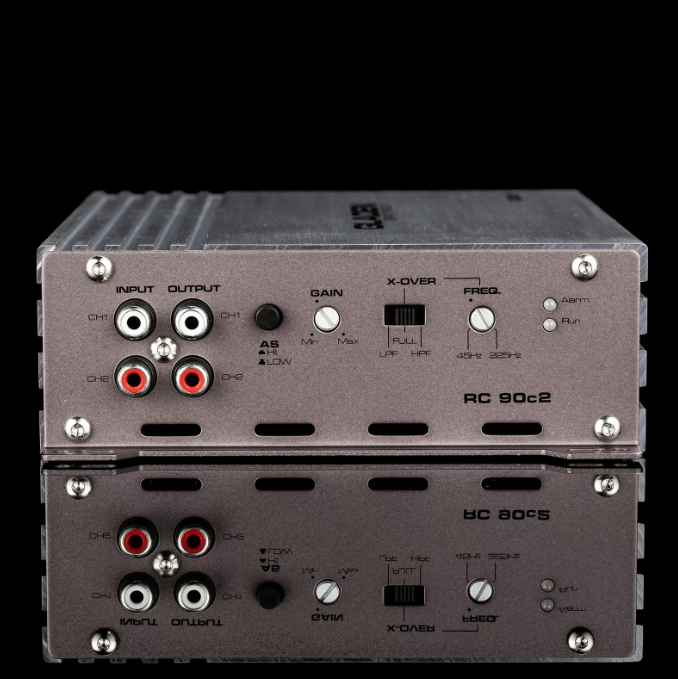

  • Input with low or high level signal

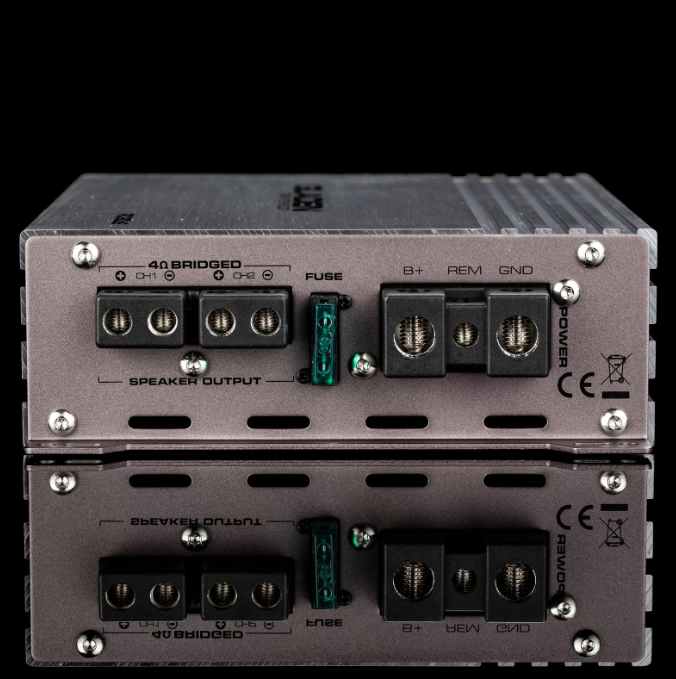

  • Stable at 2 ohms stereo per channel and 4 ohms bridge operation

  • High level with auto-sense function (no remote signal required)

  • Variable switchable low-pass filter from 45 to 225 Hz

  • Variable switchable high-pass filter from 45 to 225 Hz

Technical data Gladen RC 90c2

Power output:

  • RMS power, 4 Ohm:

    2 x 85 Watts

  • RMS power bridged, 4 Ohm:

    1 x 260 Watts

Specifications:

  • Thermal protection:

    80 °C

  • THD @ 4 Ω / 50% Pmax:

    0.5 %

  • Signal/noise:

    100 dB

  • Band width +- 1 dB:

    20 - 20000 Hz

  • Input sensitivity:

    0.2 - 10 Vrms

  • Low input impedance:

    17 kΩ

  • High input impedance:

    50 Ω (with RC-HLT)

  • Damping @ 80 Hz:

    50

  • Power consumption, idle:

    0.5 A

  • Power cons. 4 Ω stereo:

    18 A

  • Power cons. 4 Ω bridged:

    32 A

  • Power cons. 2 Ω stereo:

    32 A

  • Weight:

    1.67 kg

  • Dimensions:

    Length: 215 mm x Width: 150 mm x Height: 50 mm

Downlad

Manual Gladen RC 90c2 (PDF)
