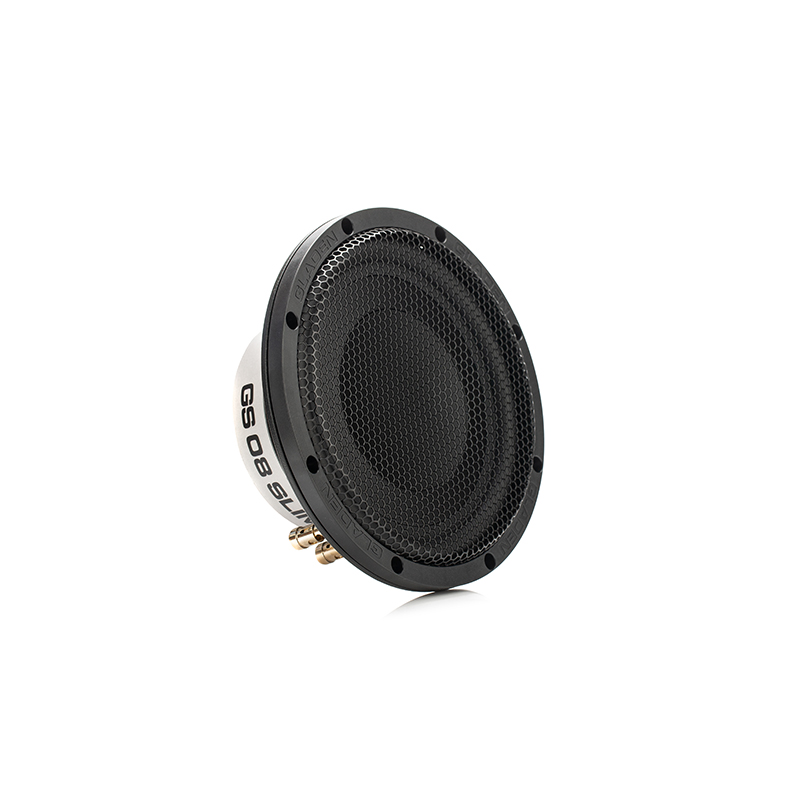

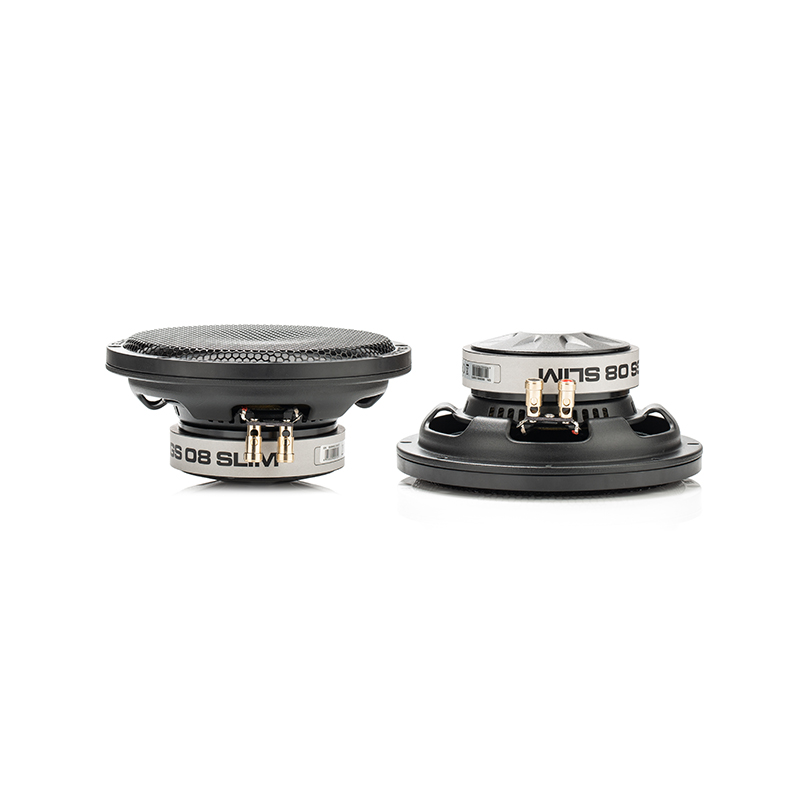

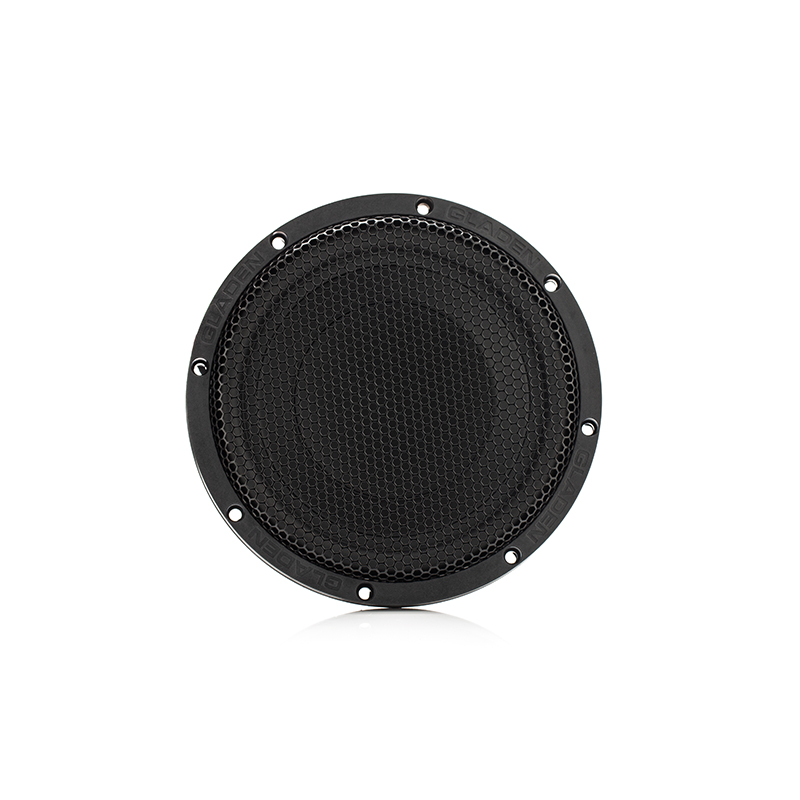

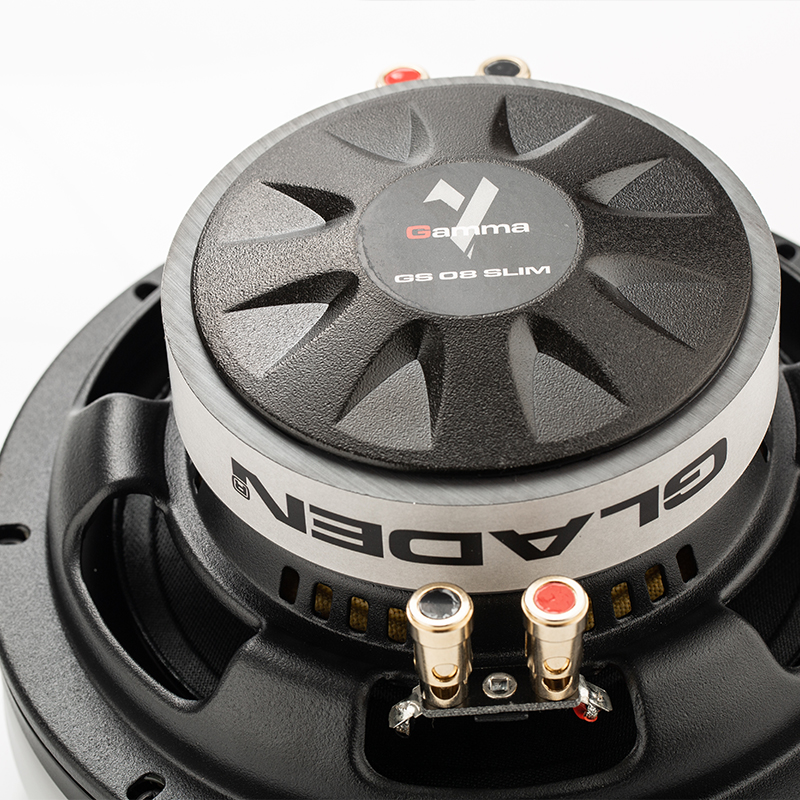

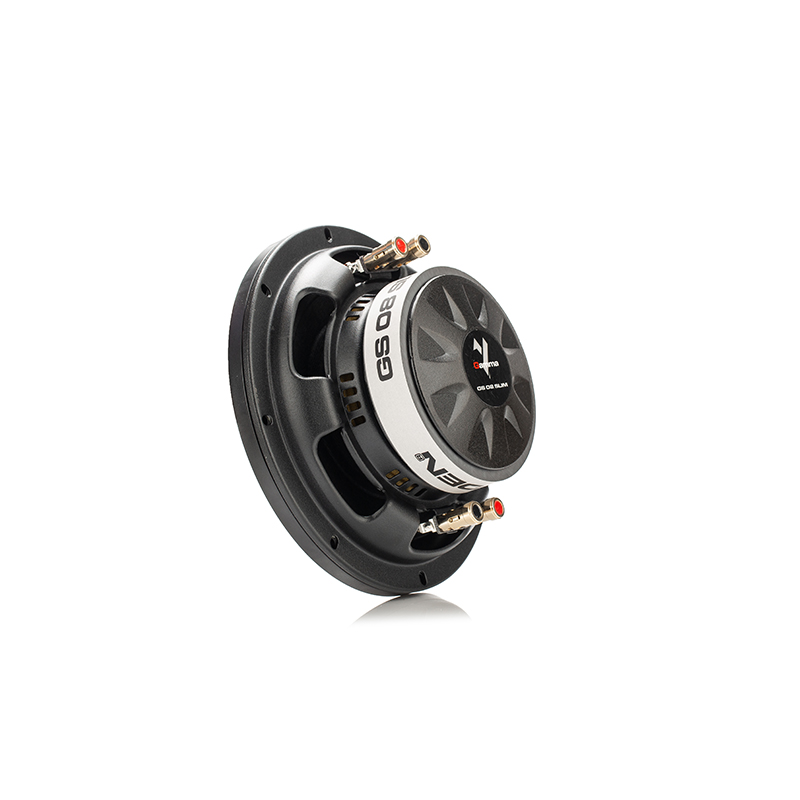

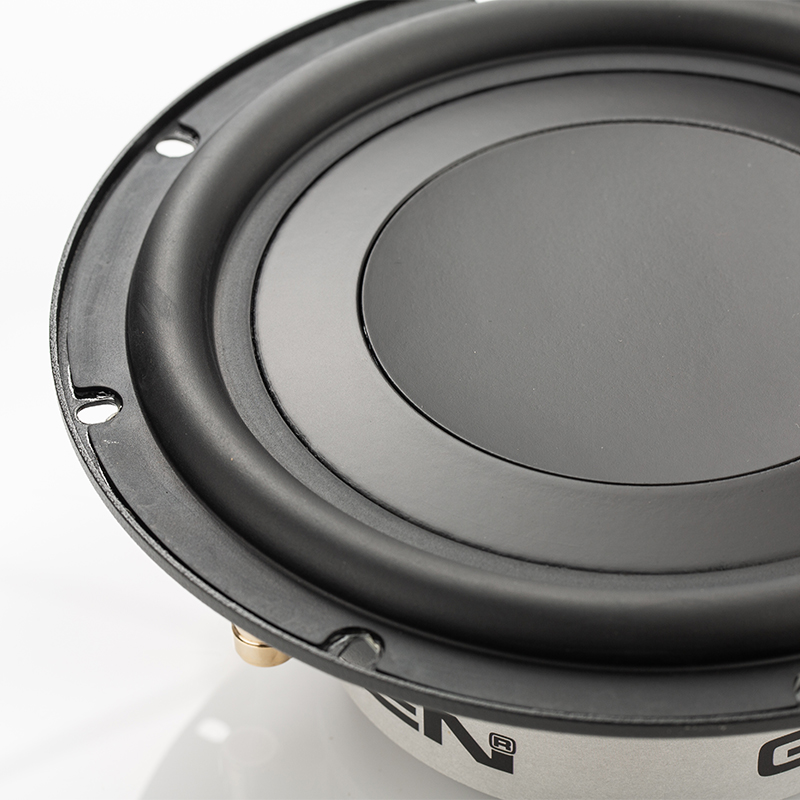

Technical Data Gladen GS08-slim

• Recommended volume (sealed):

  8 Liter

• DC resistance (Rdc):

  3,4 Ω

• Nominal impedance (ZN):

  2x2 Ω

• Resonance frequency (Fs):

  43,4 Hz

• Voice coil diameter:

  1,5 inch

• Voice coil height:

  18 mm

• Mechanical Q factor (Qms):

  6,29

• Electrical Q factor (Qes):

  0,622

• Total Q factor (Qts):

  0,566

• Moving mass (md):

  99,9 g

• Effective piston area (sm):

  211 cm2

• Mechanical resistance (Rms):

  2,65 kg/s

• Compliance (Cms):

  0,134

• Force factor (BL):

  10,87 Tm

• Equivalent air volume (Vas):

  6,3 dm3

• SPL 2,83V/1m:

  86,7 dB

• External diameter:

  209 mm

• Installation diameter:

  183 mm

• Installation depth:

  76 mm
