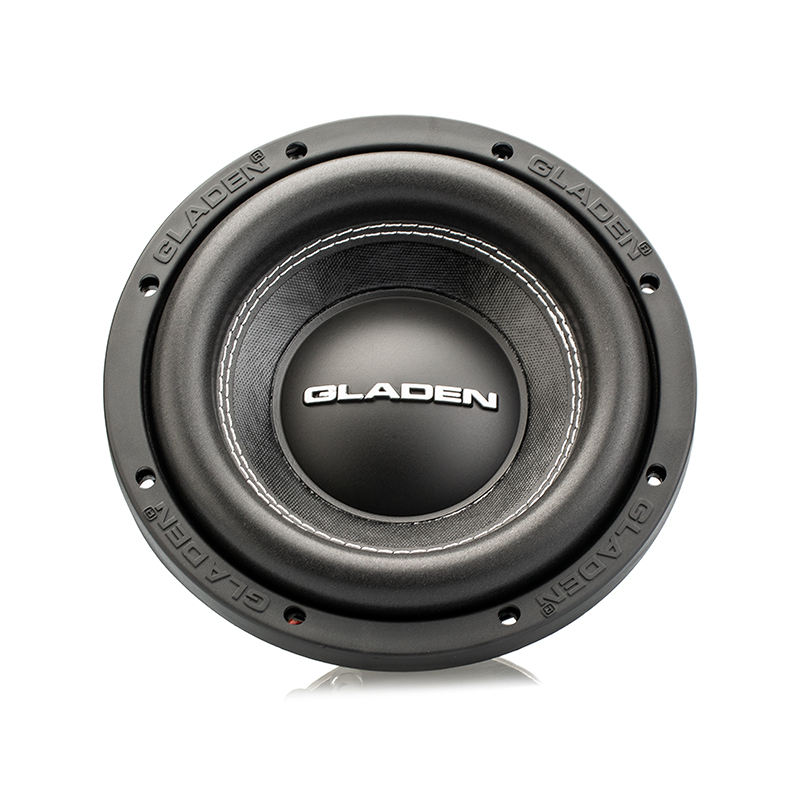

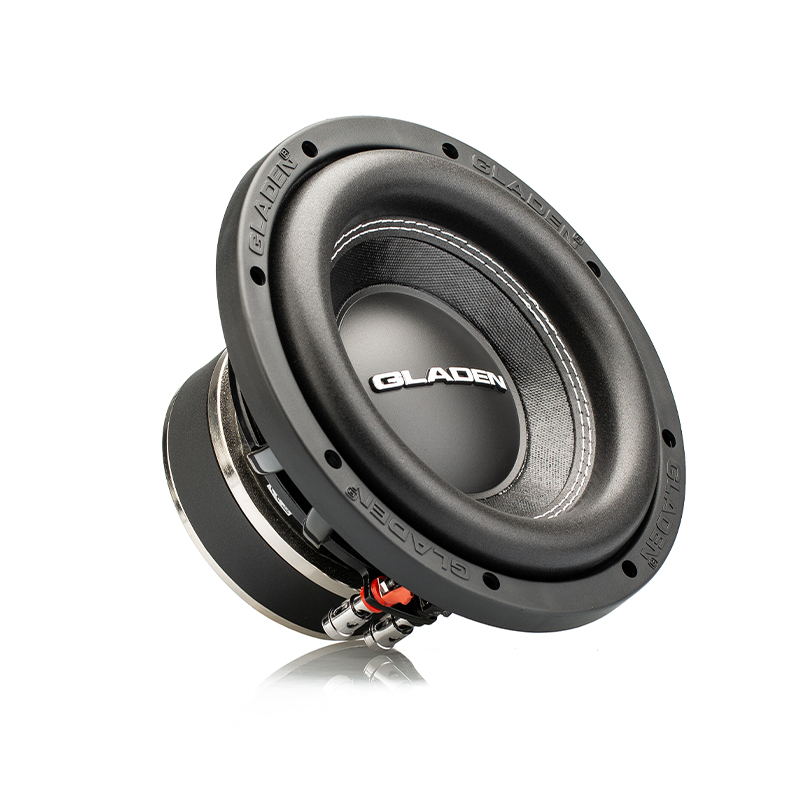

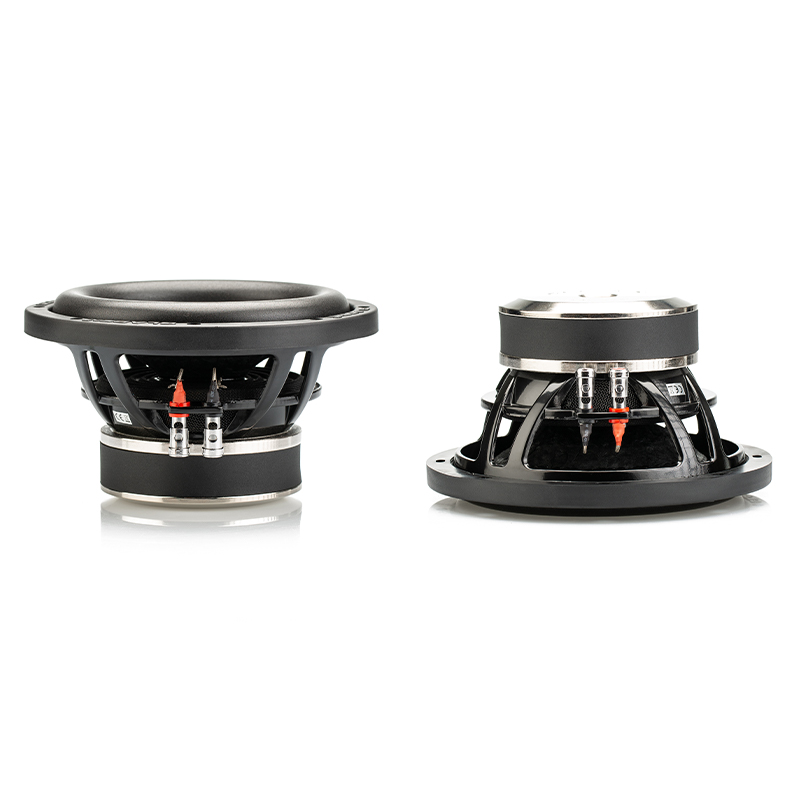

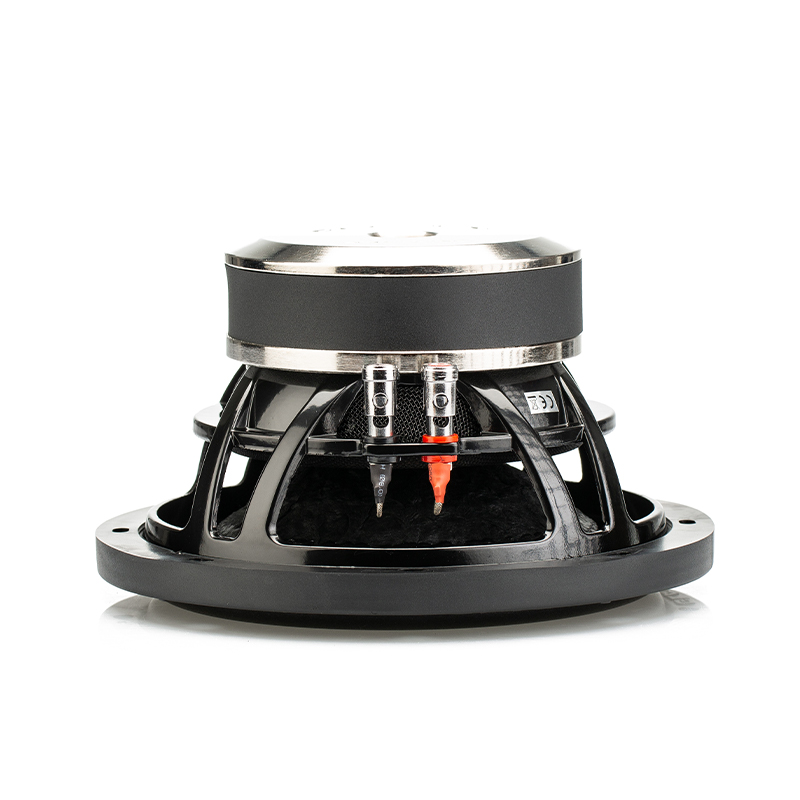

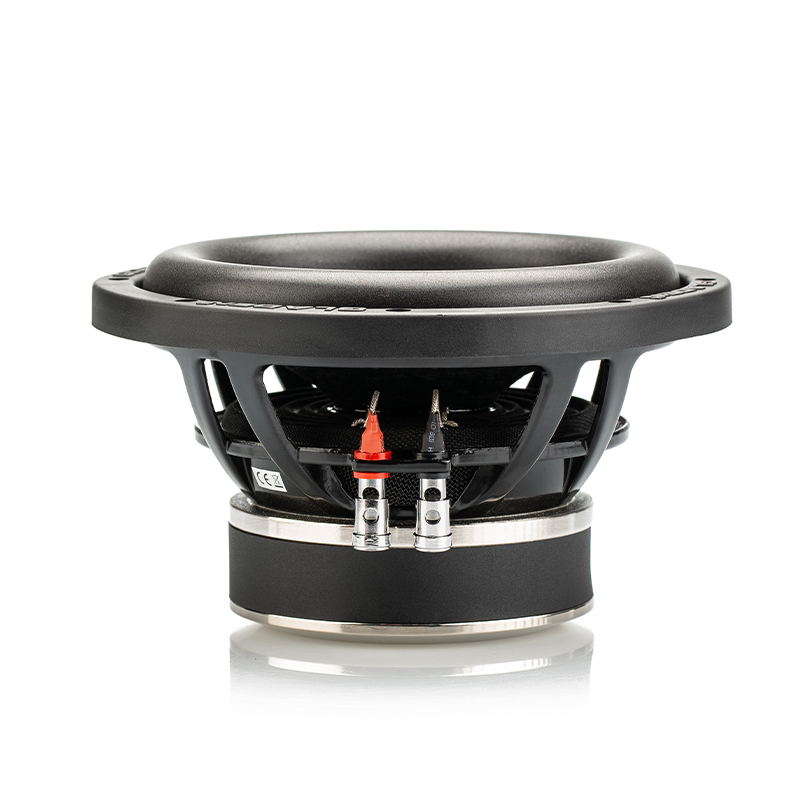

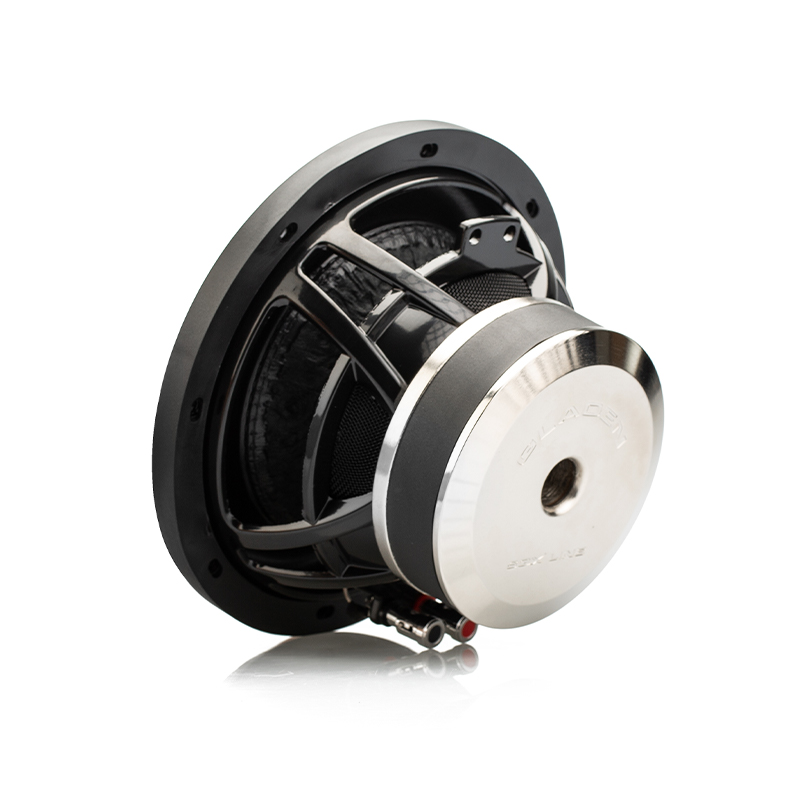

GLADEN SQX 08
● 20 cm / 8"
● Power handling: 375 / 250 Watts
● 4 Ohm impedance
● 2" voice coil
OVERVIEW GLADEN SQX 08
● High performance subwoofer
● Cast aluminum basket
● Black nomex spider
● Stitched strands
● Pressed paper diaphragm
● For 18 l ventilated
● or 10 l closed
TECHNICAL DATA GLADEN SQX 08
MATERIAL:
Cone:Paper
Spider:Nomex
Surround:Foam
Coil former:Aluminium
Basket:Aluminum
Dust Cap:PP
SPECIFICATIONS:
DC resistance (Rdc):3,2 Ω
Nominal impedance (ZN):4 Ω
Resonance frequency (fs):45,9 Hz
Voice coil diameter:2,0 inch
Mechanical Q factor (Qms):5,82
Electrical Q factor (Qes):0,54
Total Q factor (Qts):0,49
Moving mass (Mms):51,1 g
Effective piston area (Sd):221 cm²
Mechanical resistance (Rms):2,5 kg/s
Compliance (Cms):0,23 mm/N
Force factor (BL):9,4 Tm
Equivalent air volume (Vas):13,3 liters
SPL 2,83V/1m:88,6 dB
