GLADEN GENERIC 100.2

GLADEN GENERIC 100.2

  • 所属分类:专车专用
  • 人气:
  • 价格:¥ 4290
  • 发布时间:2025-06-04
  • 产品概述

2 - Way System

Gladen Generic 100.2

  • 100mm Loudspeaker system

  • 100 | 80 Watt Power handling

  • 3 Ohm Impedance

  • Neodymium magnet

  • Crossover


Overview:   Gladen Generic 100.2

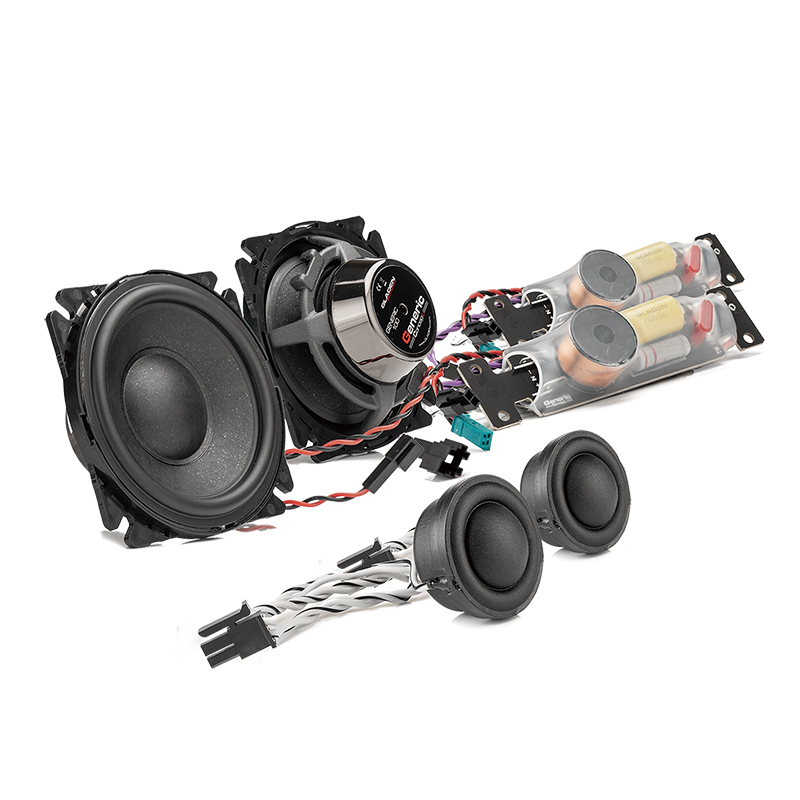

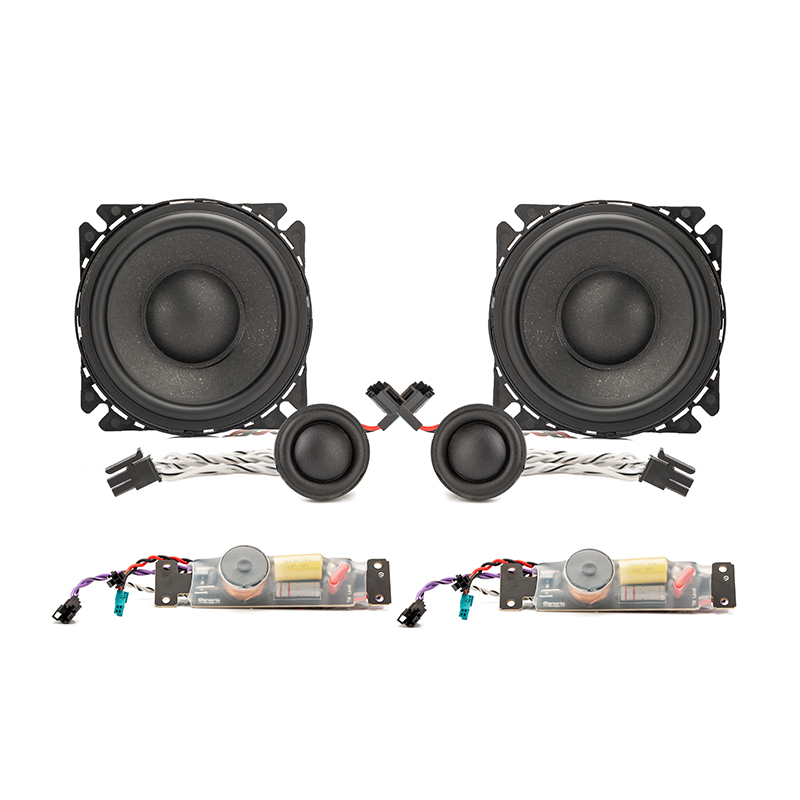

The GLADEN GENERIC 100.2 is a complete solution consisting of the GENERIC 22 and 100 and a crossover.

This universal two-way system can be easily integrated into a wide range of vehicles using the appropriate adaptations. The crossover can be installed easily and space-savingly with its new mounting system.

Connection is child's play thanks to standardized plug connections on the components. The input connector itself is a combination solution and fits a wide range of vehicles such as Mercedes, BMW and others. Nevertheless, the crossover still has an alternative signal input for special solutions.

The GLADEN GENERIC 100.2 comes with a universal adapter set for both the midrange driver and the tweeter. Vehicle-specific adaptations are optionally available. These can be found under GENERIC adaptations.

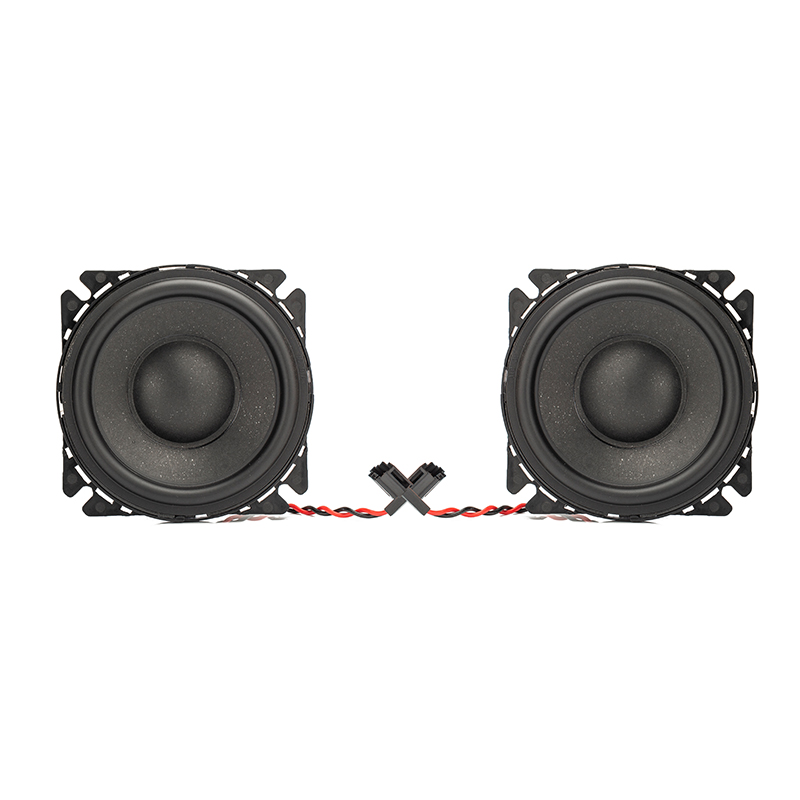

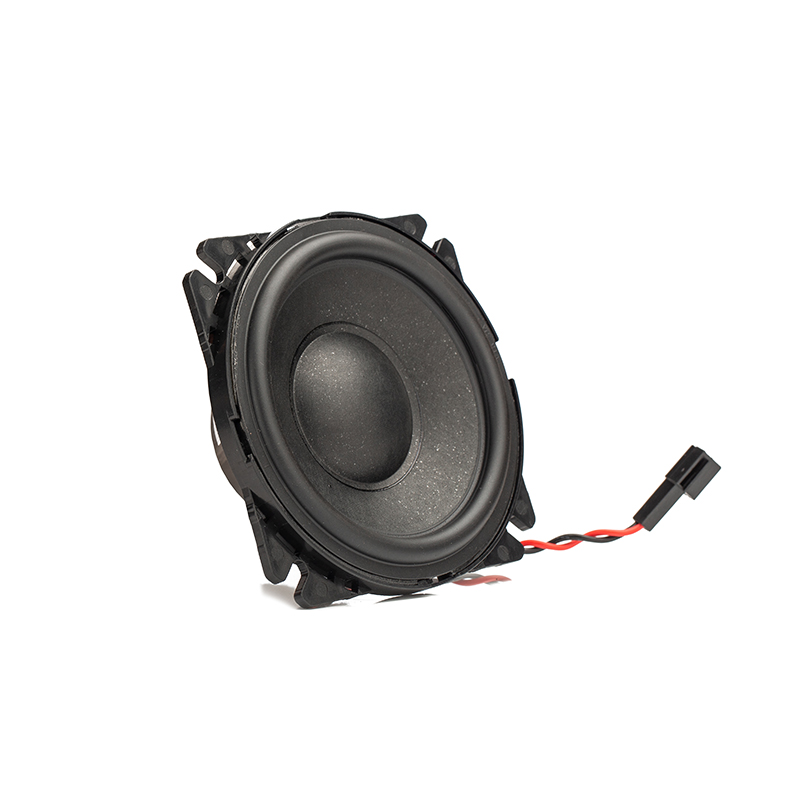

Midrange

  • Size: 100 mm

  • GENERIC click system

  • Paper - Cone

  • Cast aluminum basket

  • Neodymium magnet system

  • Flow-optimized basket design

  • Sturdy system plug

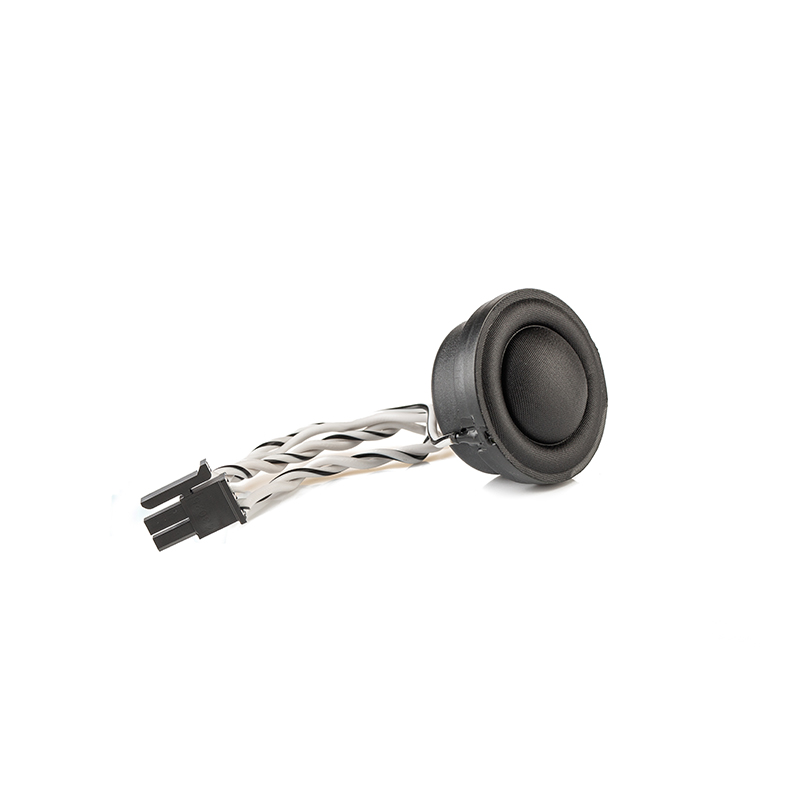

Tweeter

  • Size: 22 mm (voice coil)

  • Silk fabric membrane

  • Plastic housing with coupling volume

  • 4 Ohm Impedance

  • Sturdy system plug

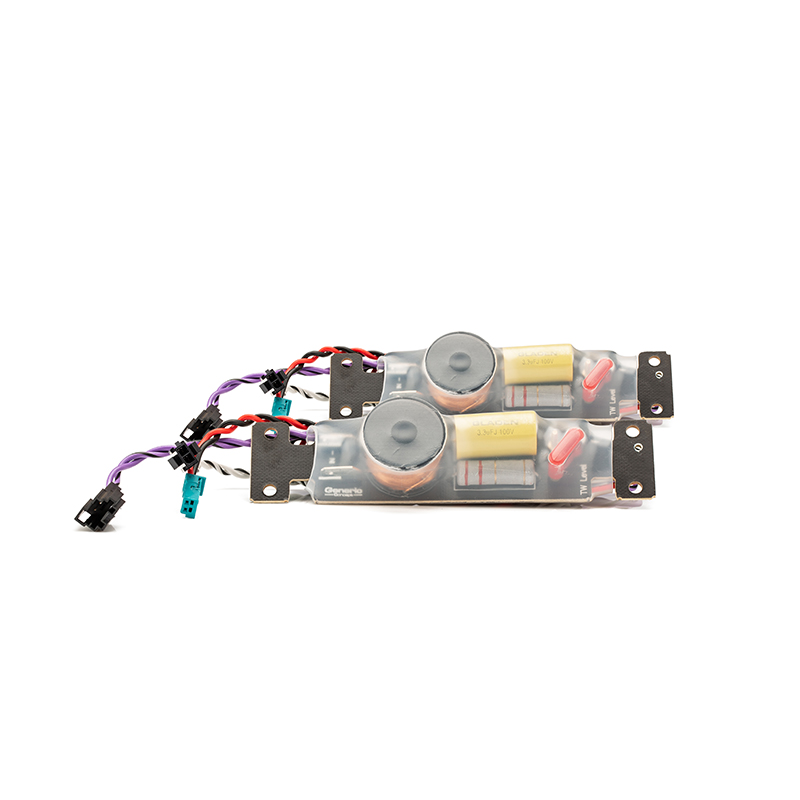

Frequenzweiche

  • High-quality components

  • Shrink tubing insulation

  • Optional signal input

  • Hochtonpegal anpassbar

  • Sturdy system plugs

  • Innovative GENERIC input plug

  • New fastening system


Technical data:   GLADEN SIGMA 165.2

Midrange

  • Diameter:

    100 mm

  • Power handling:

    100 | 80 Watt

  • Impedance:

    3 Ohm

  • Fs:

    110 Hz

  • Re:

    2,9

  • Qms:

    4,23

  • Qes:

    0,91

  • Qts:

    0,75

  • Vas:

    1,55 Liter

  • Sq:

    53 cm²

  • Mms:

    5,03 g


Tweeter

  • Diameter:

    22 mm

  • Power handling:

    100 | 80 Watt (4 kHz|12dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    850 Hz

  • Re:

    3,9 Ohm

  • Sq:

    3,8 cm²


Crossover

  • Trennfrequenz:

    4000 Hz

  • Level adjustment (tweeter):

    3 dB

  • Bi-amping capable:

    no
