GLADEN ZERO PRO 165.3 DC AC

GLADEN ZERO PRO 165.3 DC AC

  • 所属分类:扬声器
  • 人气:
  • 价格:¥14210
  • 发布时间:2023-11-21
  • 产品概述

3-Way System

Gladen ZERO PRO 165.3 DC AC (ACTIVE)

  • 165 mm speaker-system

  • 2 x 225 / 150 Watts

  • 3 Ohm impedance

  • 80 mm midrange woofer

  • 20 mm tweeter

  • Crossover (for mid-high) **not with AC


Overview GLADEN ZERO PRO 165.3 DC AC (ACTIVE)

High-end system consisting of a 165 mm bass woofer, an 80mm midrange woofer and a 20 mm dome tweeter (always in pairs).

The 2-way crossovers allow semi-active operation on at least 4 amplifier channels. (Crossover not included for AC version). The complete Zero Pro speaker system is designed and built in Germany.

For better alignment or mounting of the tweeter, the optional Gladen PODs can be used.

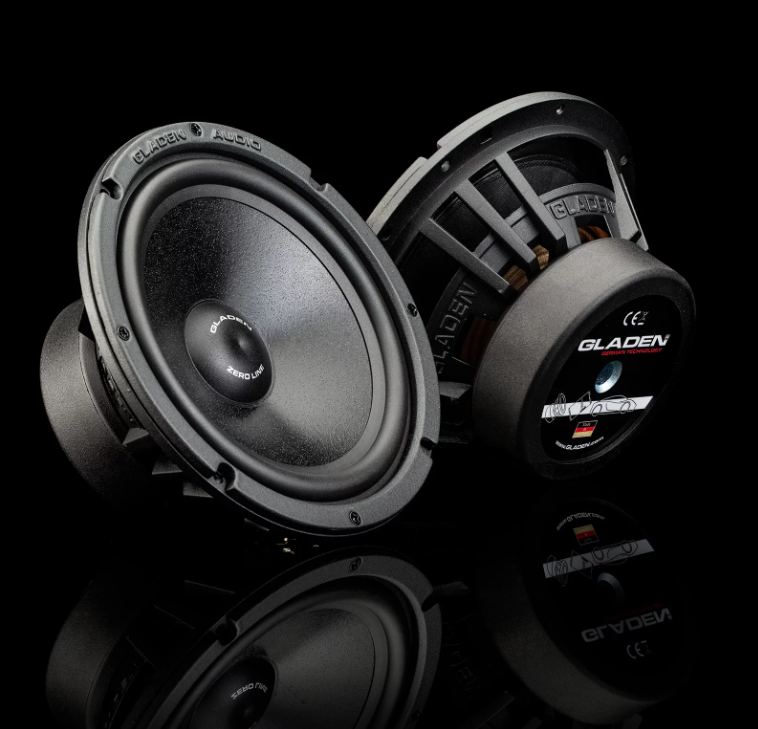

Woofer:

  • Size: 165 mm

  • Sand-coated paper membrane

  • Aluminum basket

  • Nomex spider

  • 38 mm voice coil

  • 3 Ohms impedance

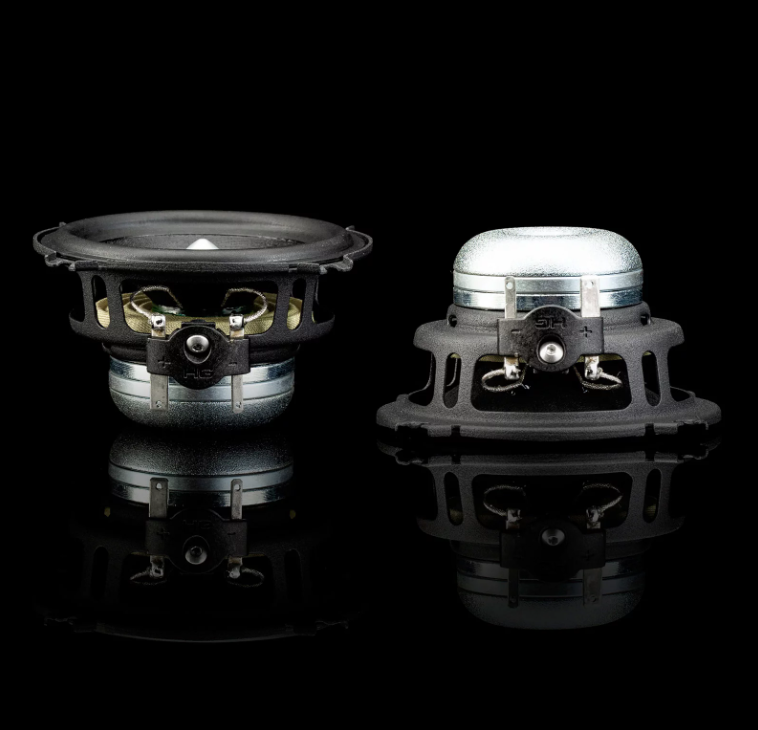

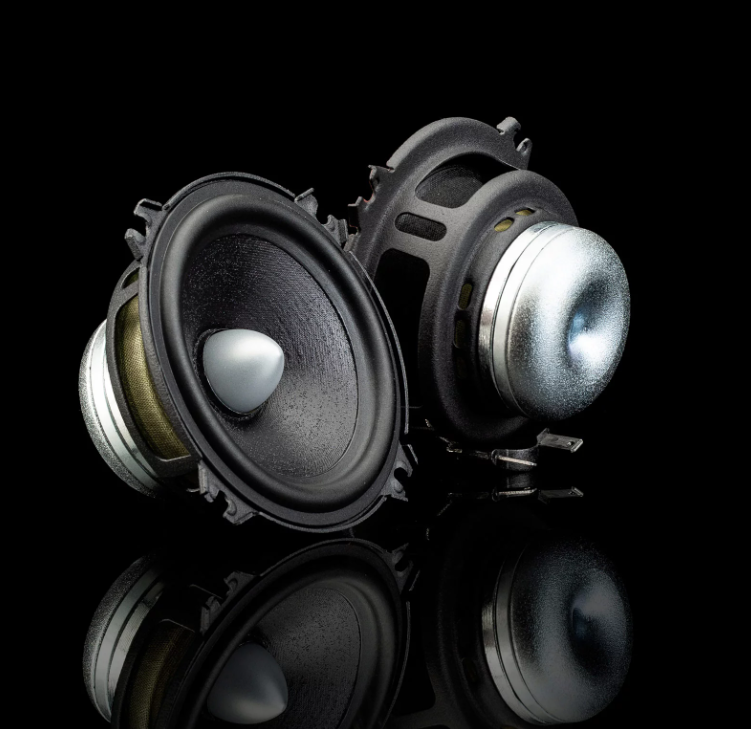

Midrange:

  • Size: 80 mm

  • Sand-coated paper membrane

  • Phase-plug

  • Neodymium magnet

  • Low-profile design

  • 3 Ohms impedance

  • Optional accessories: Speaker Rings & Grilles

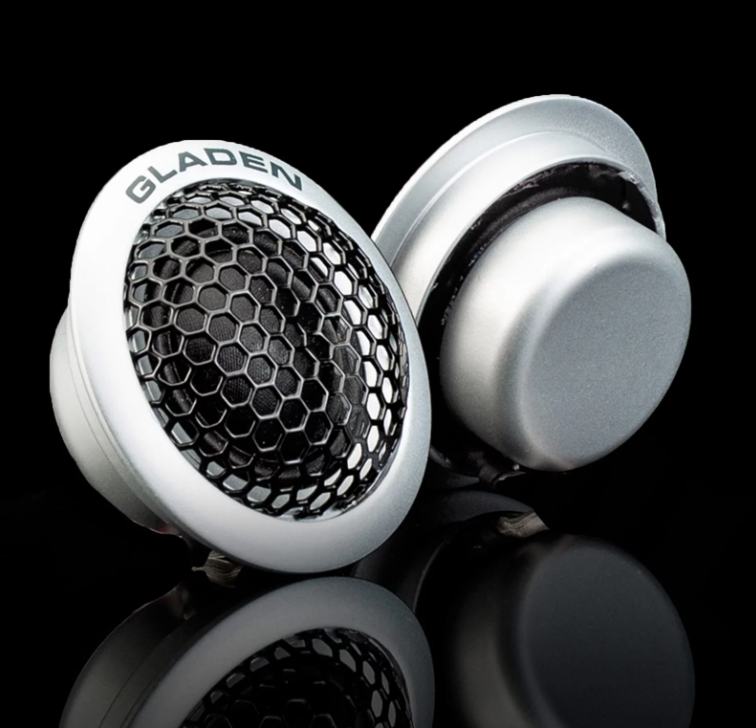

Tweeter:

  • Size: 20 mm (voice coil)

  • Silk fabric membrane

  • Aluminum housing

  • Hexagon-grille

  • 4 Ohms impedance

  • Optional accessories: Gladen PODs


Crossover, not included for active version (AC):

  • 2-way crossover for semi-active operation

  • Plexiglas housing

  • 504 setting options

  • Gold-plated screw terminals

  • PTC tweeter protection


Technical Data Woofer

  • Cone:

    Paper

  • Spider:

    Nomex

  • Surround:

    Rubber

  • Coil former:

    Aluminum

  • Basket:

    Aluminum

  • Dust Cap:

    Silk


Technical Data Midrange Woofer

  • Cone:

    Paper

  • Spider:

    Nomex

  • Surround:

    Rubber

  • Coil former:

    Aluminum

  • Basket:

    Steel

  • Dust Cap:

    Silk


Technical Data Tweeter

  • Cone:

    Silk

  • Coil Former:

    Kapton
