GLADEN RS 165.3 G2

GLADEN RS 165.3 G2

  • 所属分类:扬声器
  • 人气:
  • 价格:¥5020
  • 发布时间:2023-11-21
  • 产品概述

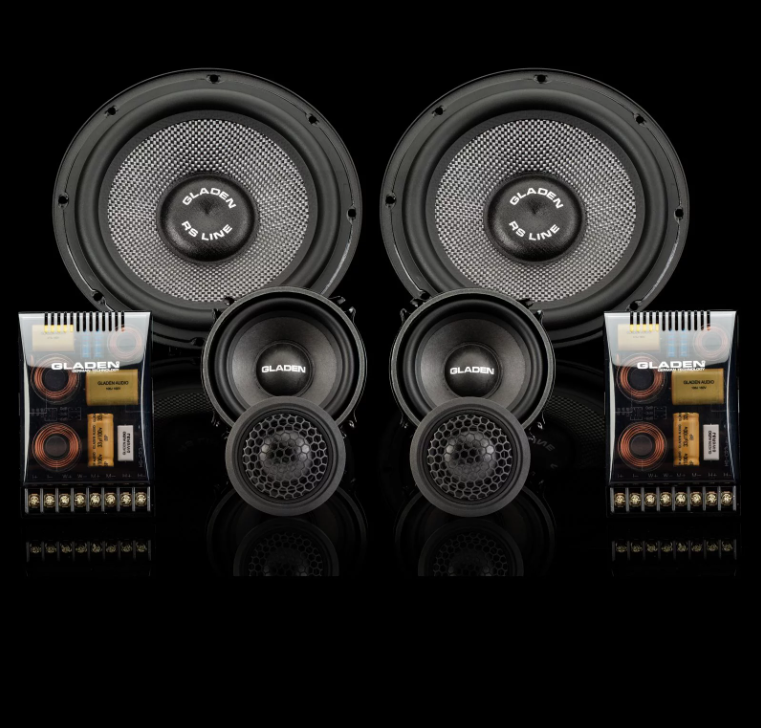

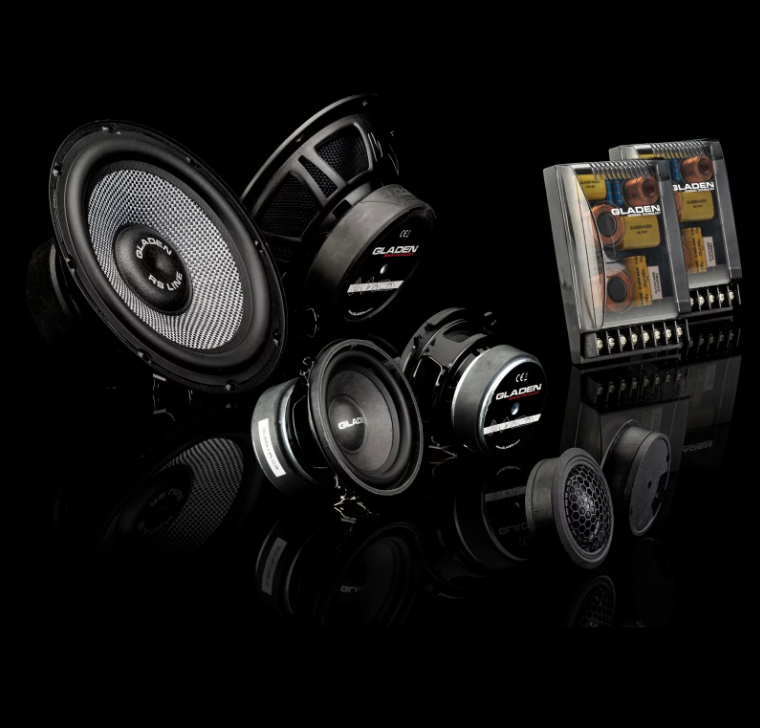

3-way Component Speaker System

Gladen RS-165.3 G2

  • 165 mm speaker system

  • 2 x 170 / 120 Watts

  • 3 Ohm impedance

  • 80 mm midrange driver

  • 25 mm tweeter

  • Crossover


Overview
GLADEN RS-165.3 G2

All-round 3-way speaker system consisting of a 165 mm woofer, an 80 mm midrange driver and a 25 mm tweeter dome (always in pairs). The speaker system comes with a passive 3-way crossover.

For the installation of the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.

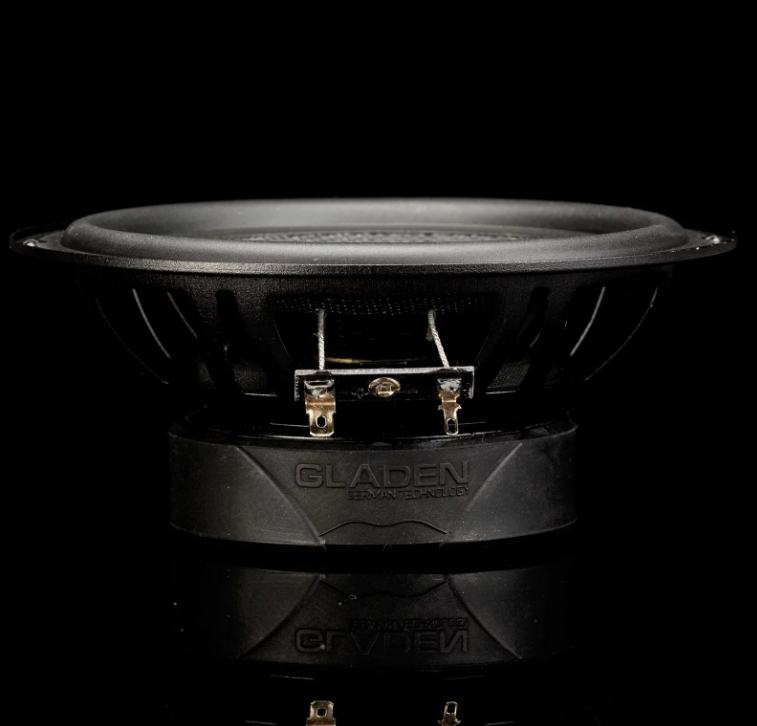

Woofer:

  • Size: 165 mm

  • Fabric cone

  • Steel plate-basket

  • Nomex center spider

  • 25 mm voice coil

  • Rubber-magnet protection

  • 3 Ohm impedance

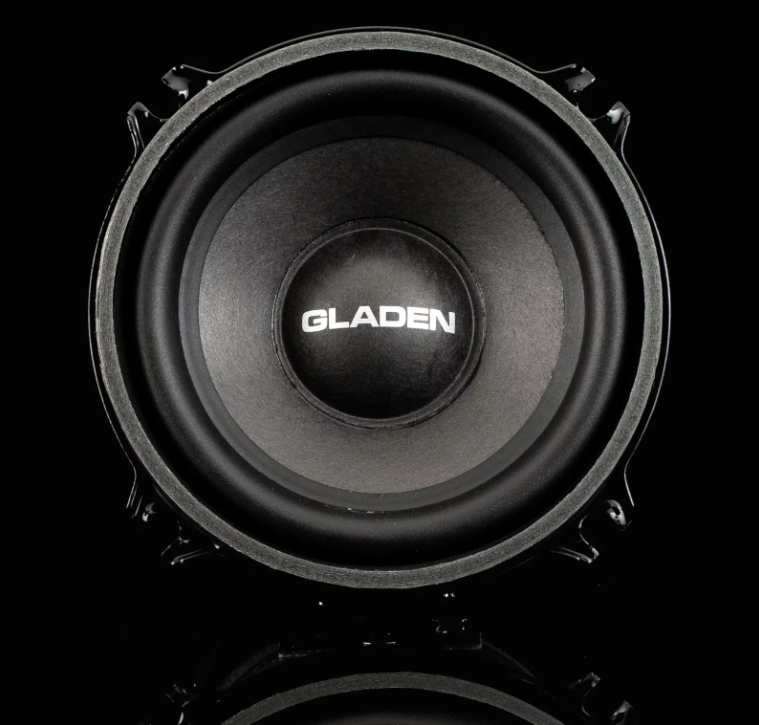

Midrange:

  • Size: 80 mm

  • Paper diaphragm

  • Ferrite-Magnet

  • Polkerm-ventilation

  • 3 Ohm impedance

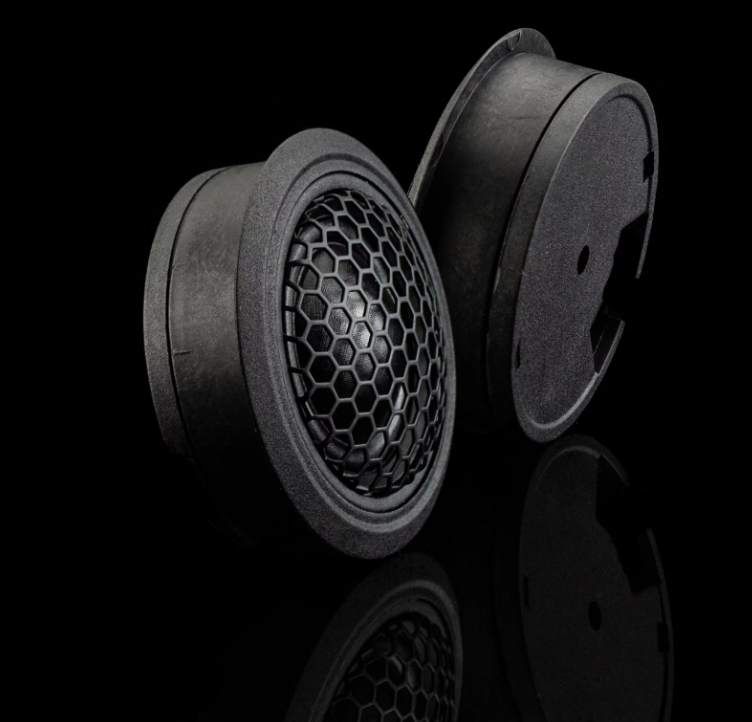

Tweeter:

  • Size: 25 mm (voice coil)

  • Silk-fabric diaphragm

  • Hexagon grille

  • 4 Ohm impedance

  • Optional accessories: Gladen PODs

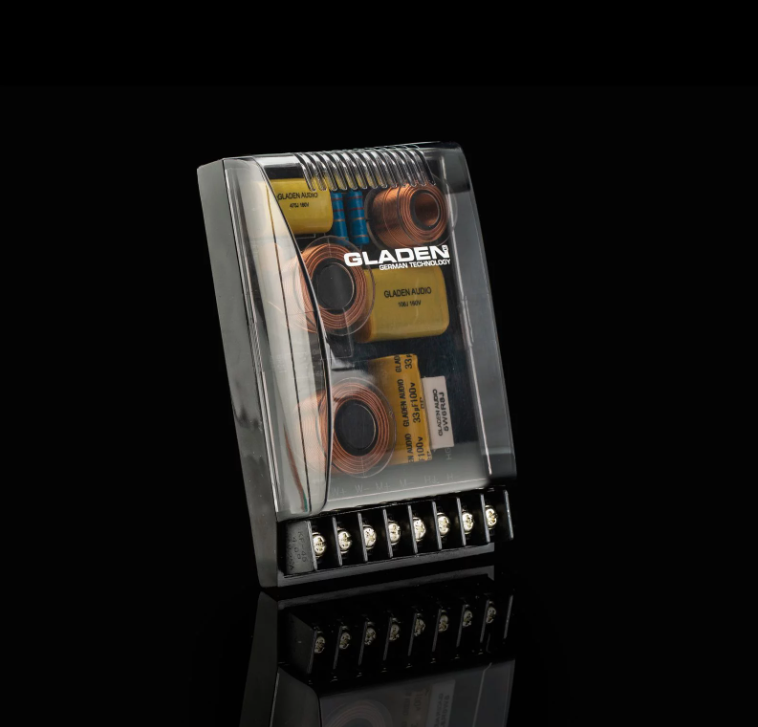

Crossover:

  • Plexiglas housing

  • 9 adjustment possibilities

  • Gold-plated screw terminals


Technical data woofer

  • Cone:

    Fiberglass

  • Spider:

    Nomex

  • Surround:

    Rubber

  • Coil former:

    Aluminum

  • Basket:

    Steel

  • Dust cap:

    Fiberglass


Technical data midrange

  • Cone:

    Paper

  • Spider:

    Nomex

  • Surround:

    Rubber

  • Coil former:

    Aluminum

  • Basket:

    Steel

  • Dust cap:

    Paper


Technical data tweeter

  • Cone:

    Silk fabric

  • Coil former:

    Kapton
