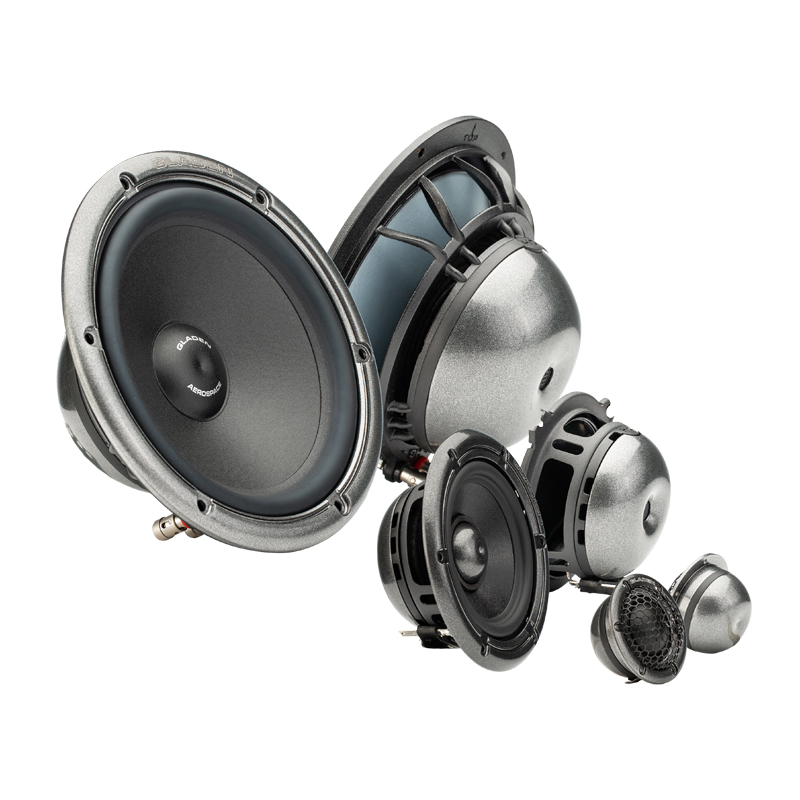

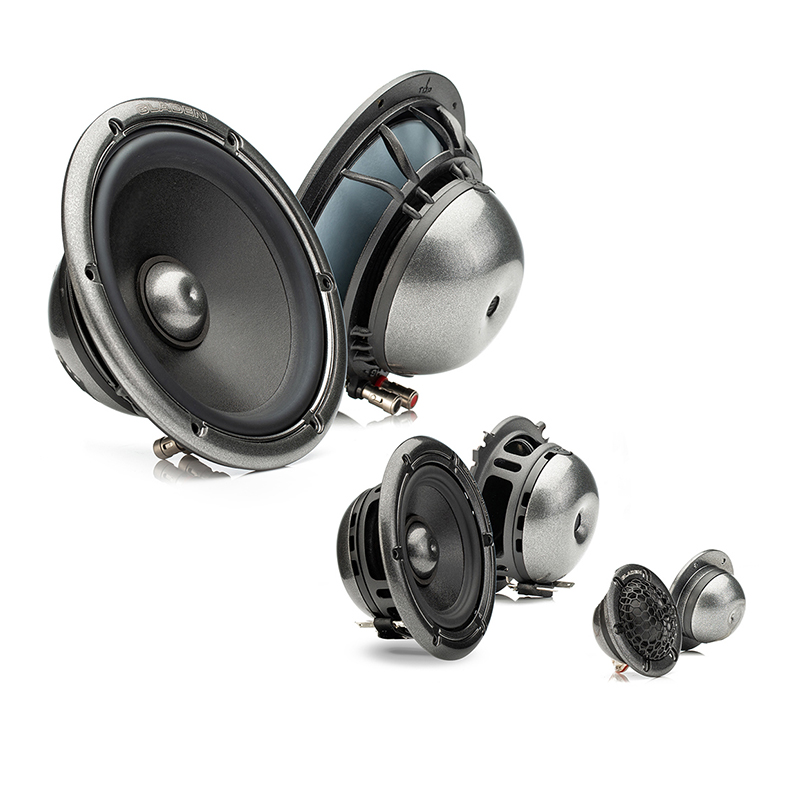

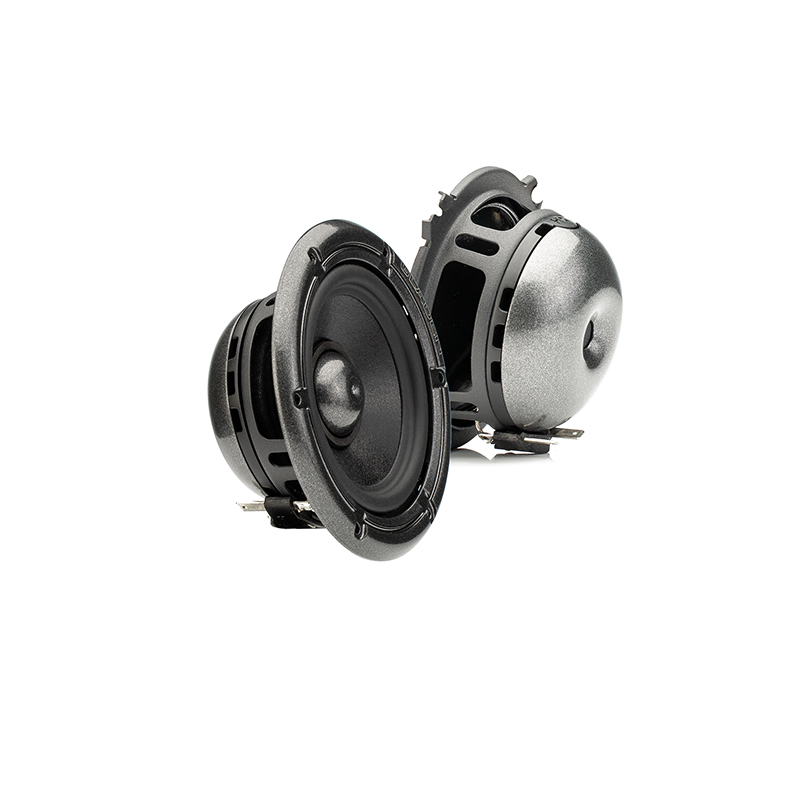

GLADEN AEROSPACE 165.3

GLADEN AEROSPACE 165.3

  • 所属分类：扬声器
  • 人气：
  • 价格：￥40860
  • 发布时间：2023-11-21
我要咨询
  • 产品概述

3 - Way System

Gladen AEROSPACE 165.3

  • 2 x 135 / 90 Watts

  • 165 mm phase plug woofer

  • 3 Ohm impedance

Overview

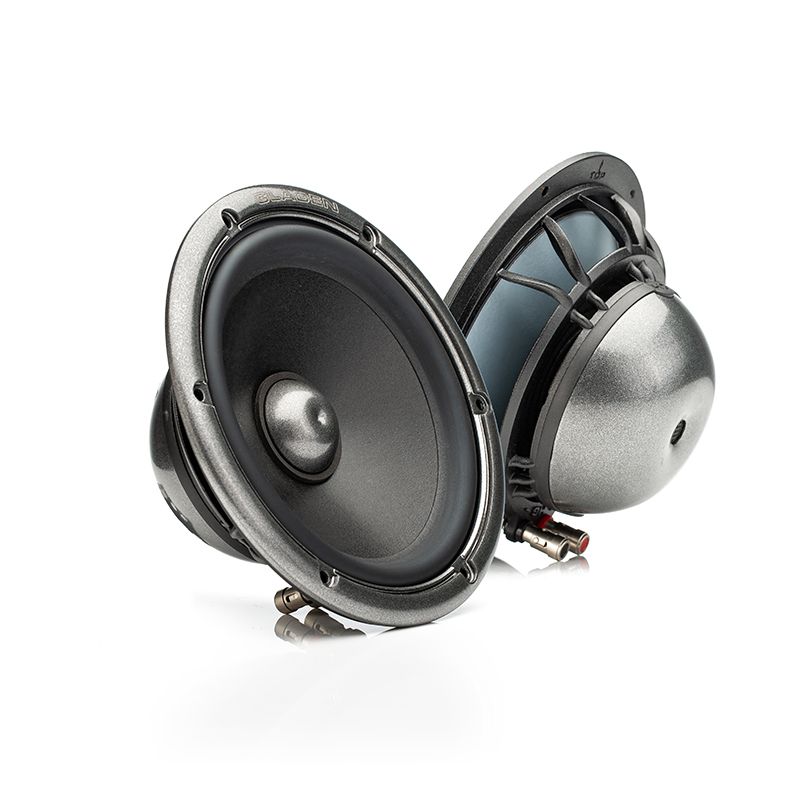

Woofer

  • Absolute high-end system

  • GLADEN C7 high-tech membrane

  • Zero Point technology

  • Computer optimised cast basket

  • Made in Germany


MIDRANGE

  • Absolute high-end loudspeaker

  • GLADEN C5 high-tech membrane

  • Zero Point technology

  • Made in Germany

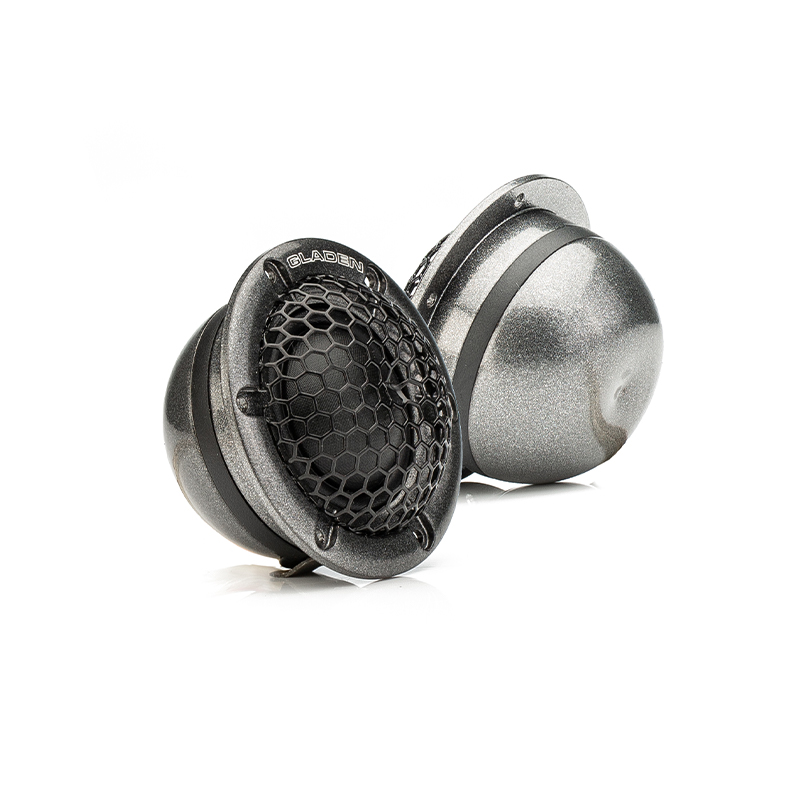

Tweeter

  • Absolute high-end loudspeaker

  • Tweeter with coupling volume

  • Hand coated tweeter dome

  • Made in Germany

Technical data

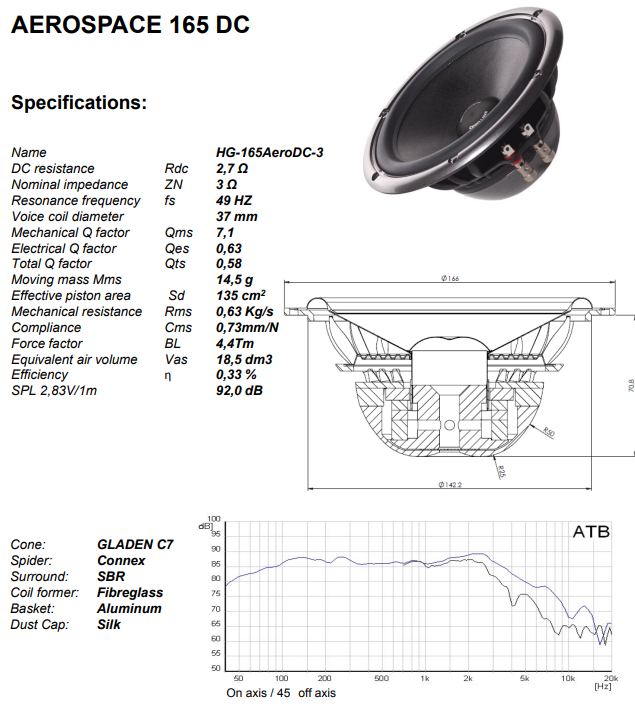

Woofer

  • Cone:

    GLADEN C7

  • Spider:

    Connex

  • Surround:

    SBR

  • Coil former:

    Fibreglass

  • Basket:

    Aluminum

  • Phase Plug:

    Aluminum

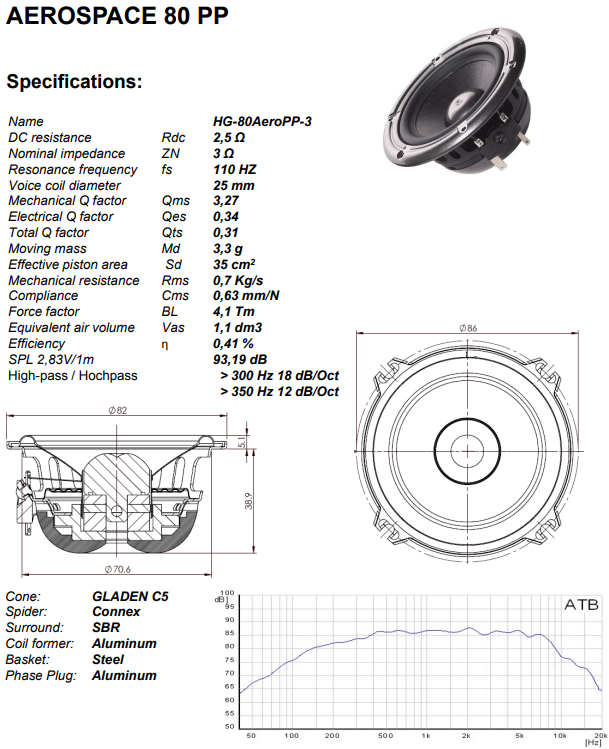

MIDRANGE

  • Cone:

    GLADEN C5

  • Spider:

    Connex

  • Surround:

    SBR

  • Coil former:

    Aluminum

  • Basket:

    Steel

  • Phase Plug:

    Aluminum

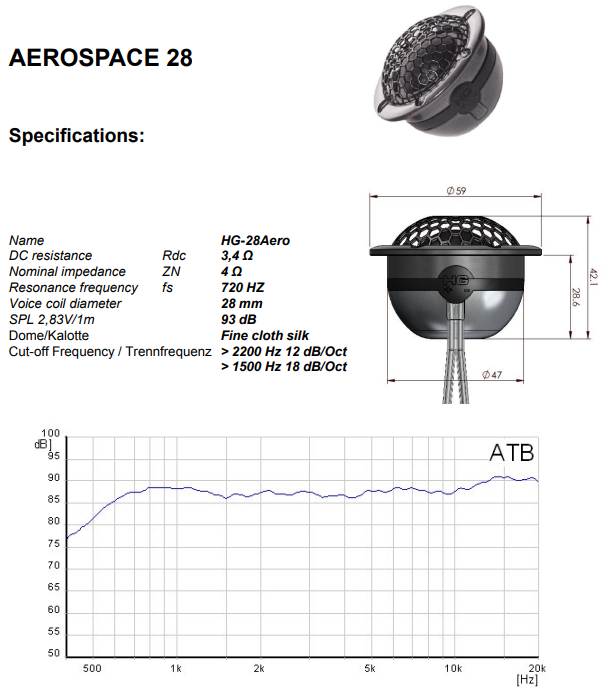

Tweeter

  • DC resistance (Rdc):

    3,4 Ω

  • Nominal impedance (ZN):

    4 Ω

  • Resonance frequency (fs):

    720 Hz

  • Voice coil diameter:

    28 mm

  • SPL 2,83V/1m:

    93 dB

  • Dome/Kalotte:

    Fine cloth silk

  • Cut-off Frequency / Trennfrequenz:

    > 2200 Hz 12 dB/Oct
    > 1500 Hz 18 dB/Oct

Download

Datasheet Gladen AEROSPACE 165PP (PDF)


Datasheet Gladen AEROSPACE 80 (PDF)


Datasheet Gladen AEROSPACE 28 (PDF)
